SF2201E Datasheet - muRata

SF2201E SAW Filter

Low-loss SAW Filter Surface Mount 3.0 x 3.0 x 1.3 mm Package Absolute Maximum Ratings Rating Input Power Level DC Voltage on any Non-ground Terminal Operable Temperature Range Specification Temperature Range Storage Temperature Range in Tape and Reel Maximum Soldering Profile, 5 cycles/10 seconds maximum Value +17 5 -45 to +125 -30 to +85 -40 to +85 265 Units dBm V °C °C °C °C RoHS Compliance This component is compliant with RoHS directive. This component was always RoHS c.

SF2201E-muRata.pdf

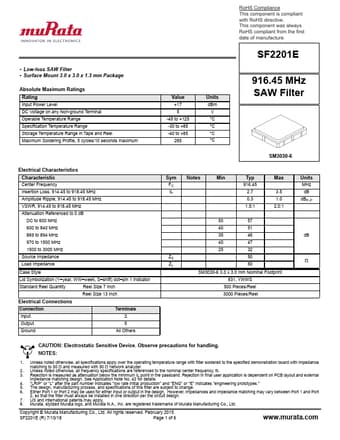

Preview of SF2201E PDF
SF2201E Datasheet Preview Page 2 SF2201E Datasheet Preview Page 3

Datasheet Details

Part number:

SF2201E

Manufacturer:

muRata

File Size:

1.26 MB

Description:

Saw filter.
