SF2205E Datasheet - muRata

SF2205E SAW Filter

SF2205E Surface-mount 3.0 x 3.0 x 1.3 mm Package Complies with Directive 2002/95/EC (RoHS) Absolute Maximum Ratings Rating Input Power Level DC Voltage on any Non-ground Terminal Operable Temperature Range Specification Temperature Range Storage Temperature Range in Tape and Reel Solder Reflow Temperature, 10 seconds, 5 cycles maximum Pb Value 10 3 -45 to +125 -25 to +75 -40 to +85 260 Units dBm V °C °C °C °C 879 MHz SAW Filter SM3030-6 Electrical Characteristics Charact.

SF2205E-muRata.pdf

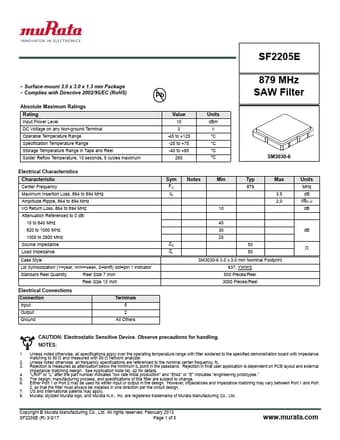

Preview of SF2205E PDF
SF2205E Datasheet Preview Page 2 SF2205E Datasheet Preview Page 3

Datasheet Details

Part number:

SF2205E

Manufacturer:

muRata

File Size:

219.37 KB

Description:

Saw filter.
