LN2512

1.5MHz Micropower Synchronous Boost Converter

LN2512 Features

* automatic shifting to power saving PFM Mode operation at light loads. Antiringing control circuitry reduces EMI concerns by damping the inductor in discontinuous mode, and the devices feature low shutdown current of under 1µA. Both devices are available in the low profile (1mm) SOT-23 package.

LN2512 General Description

The LN2512 is a synchronous, fixed frequency, step-up DC/DC converters delivering high efficiency in a 6-lead ThinSOT package. Capable of supplying 3.3V at 100mA from a single AA cell input, the devices contain an internal NMOS switch and PMOS synchronous rectifier. A switching frequency of 1.5MHz m.

LN2512 Datasheet (225.65 KB)

Rating: 1 ★ (4 votes)

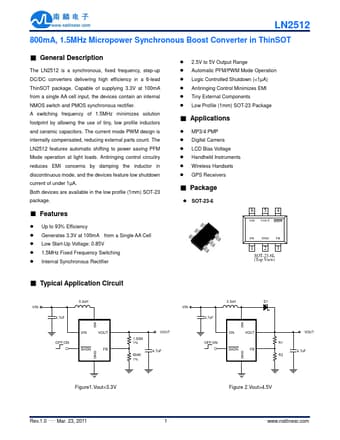

LN2512 Datasheet Preview — Preview of LN2512 PDF

Datasheet Details

Part number:

LN2512

Manufacturer:

natlinear

File Size:

225.65 KB

Description:

1.5mhz micropower synchronous boost converter.
