LN2542

85~265V AC Input LED Constant Current Driver

LN2542 Features

* Switch mode constroller for single switch LED Drivers

* Open loop peak current controller

* Wide Input range from 8VDC~450VDC or 110VAC/220AC

* Application from a few mA to more than 1A output

* Up to hundreds of LEDs

* Constant off-time operation

* Linear and PWM dimmi

LN2542 General Description

The LN2542 is a high voltage buck control IC for constant LED current regulation. The LN2542 operates constant off-time mode. It allow efficient operation of High Brightness (HB) LEDs from voltage sources ranging from 8VDC up to 450VDC or 110VAC/220VAC. The LN2542 includes a PWM dimming input that c.

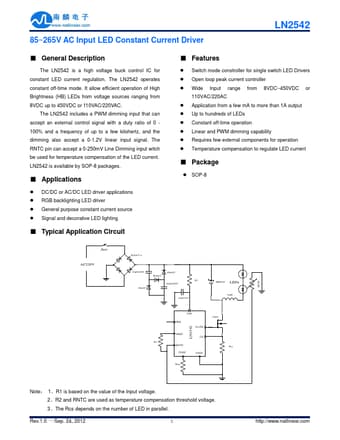

LN2542 Datasheet (249.38 KB)
