LN2544

100V Input Universal High Brightness LED Driver

LN2544 Features

* Switch mode constroller for single switch LED Drivers

* Wide Input range from 8VDC~100VDC

* Open loop peak current controller

* Application from a few mA to more than 1A output

* Constant off-time operation

LN2544 General Description

LN2544 is an open loop, current mode , built-in NMOSFET, control LED driver IC. The LN2544 operates constant off-time mode. It allows efficient operation of High Brightness (HB) LEDs from voltage sources ranging from 8VDC up to 100VDC. The LN2544 includes a PWM dimming input that can accept an exter.

LN2544 Datasheet (1.21 MB)

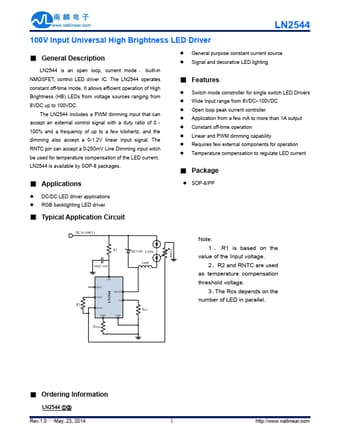

Preview of LN2544 PDF

Datasheet Details

Part number:

LN2544

Manufacturer:

natlinear

File Size:

1.21 MB

Description:

100v input universal high brightness led driver.
