LN3526 - Micropower Supervisory Circuit

📥 Download Datasheet

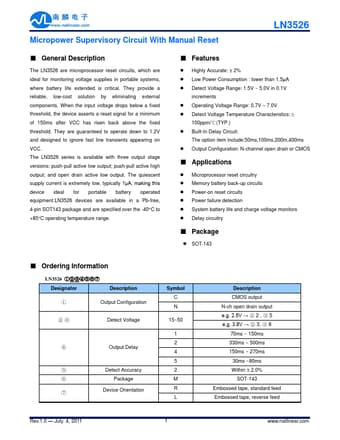

LN3526 Datasheet Preview — Preview of LN3526 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LN3526
Manufacturer	natLinear ↗
File Size	321.68 KB
Description	Micropower Supervisory Circuit
Datasheet	LN3526-natlinear.pdf

LN3526 Product details

Description

The LN3526 are microprocessor reset circuits, which are ideal for monitoring voltage supplies in portable systems, where battery life extended is critical.

Features

br>.
Highly Accurate: ± 2%.
Low Power Consumption : lower than 1.5μA.
Detect Voltage Range: 1.5V ~ 5.0V in 0.1V increments.
Operating Voltage Range: 0.7V ~ 7.0V.
Detect Voltage Temperature Characteristics:± 100ppm/℃(TYP. ).
Built-In Delay Circuit: The option item include:50ms,100ms,200m,400ms.
Output Configuration: N-channel open drain or CMOS.
