LN3699 Low Voltage Quad SPDT Analog Switch

LN3699 Description

0.5Ω Low Voltage Quad SPDT Analog Switch LN3699 * General .
The LN3699 is a quad, low on-resistance, low voltage, bidirectional, single-pole/double-throw (SPDT) CMOS analog switch that is designed to operate fr.

LN3699 Features

* Voltage range: 1.8V ~ 4.2V
* Low resistance: 0.5Ω (TYP)
* Fast switching time (4.2V): tON = 50ns, tOFF = 25ns
* -3dB bandwidth: 70MHz
* Low power consumption:

LN3699 Applications

* include battery powered equipment that benefit from low RON (0.5Ω) and fast switching speeds (tON = 52ns, tOFF = 25ns). The LN3699 consists of four SPDT switches. It is configured as a dual double-pole/double-throw (DPDT) device with two logic control inputs that control two SPDT switches each. The

📥 Download Datasheet

Preview of LN3699 PDF

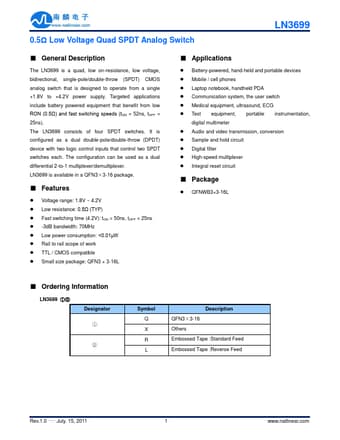

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LN3699
Manufacturer
natlinear
File Size
276.74 KB
Datasheet
LN3699-natlinear.pdf
Description
Low Voltage Quad SPDT Analog Switch
