LN4919

CMOS Hall IC

LN4919 Features

* 1.8V to 4.5V battery operation

* Operation with North or South Pole

* Chopper stabilized

* Superior temperature stability

* Extremely Low Switch-Point Drift

* Insensitive to Physical Stress

* Good RF noise immunity

* ESD HBM bigger than 4kV

* Lead Free Finish/Ro

LN4919 General Description

LN4919 is with proprietary Hall effect plate and single CMOS output driver, mainly designed for battery

*powered, hand-held equipment (such as Cellular and Cordless Phone, PDA). When north-pole of sufficient strength on chip or south-pole of sufficient strength under chip, the LN4919 will tur.

LN4919 Datasheet (474.83 KB)

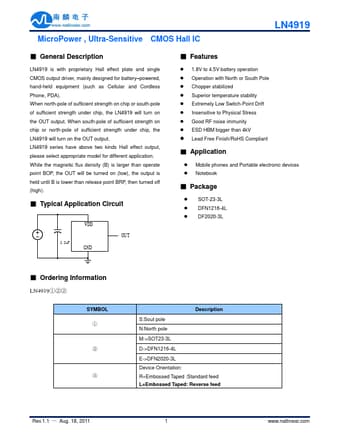

Preview of LN4919 PDF

Datasheet Details

Part number:

LN4919

Manufacturer:

natlinear

File Size:

474.83 KB

Description:

Cmos hall ic.
