LN4913 - High Sensitivity CMOS Hall IC

Datasheet Summary

Description

The LN4913 is an integrated hall-effect sensor designed specifically to meet the requirements of low-power devices.

e.g.

as an On/Off switch in Cellular Flip-Phones, with battery operating voltages of 1.65V-5.5V.

Features

  • Micro power design.
  • 1.65 V to 5.5 V battery operation.
  • High sensitivity and high stability of the magnetic switching points.
  • High resistance to mechanical stress.
  • Digital output signal.
  • Switching for both poles of a magnet (omnipolar).
  • Not suitable for automotive.

📥 Download Datasheet

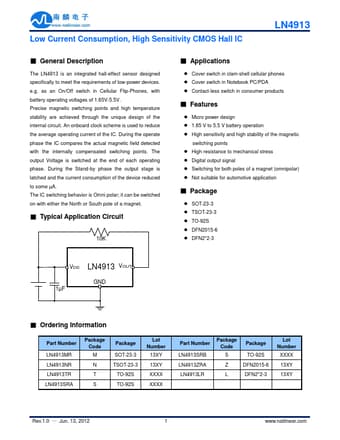

Datasheet preview – LN4913

Datasheet Details

Part number LN4913
Manufacturer natLinear
File Size 428.12 KB
Description High Sensitivity CMOS Hall IC
Datasheet download datasheet LN4913 Datasheet
Additional preview pages of the LN4913 datasheet.

📁 Similar Datasheet

  • LN49YPX - Round Type (Panasonic Semiconductor)
  • LN4023-13 - THREE DIGIT DISPLAY (LEDTECH)
  • LN416YPH - 3.0 mm X 7.0 mm Series (Panasonic Semiconductor)
  • LN417YPH - 5.3 mm X 1.8 mm Series (Panasonic Semiconductor)
  • LN41YCPH - Round Type (Panasonic Semiconductor)
  • LN41YCPSS - 4.8 mm Series (Panasonic Semiconductor)
  • LN41YPH - Round Type (Panasonic Semiconductor)
  • LN41YPSLX - 5.0 mm Series (Panasonic Semiconductor)
  • LN41YPX - 5.0 mm Series (Panasonic Semiconductor)
  • LN420YPH - 1.75 mm X 7.0 mm Series (Panasonic Semiconductor)
Other Datasheets by natlinear
  • LN4911 - High Sensitivity CMOS Hall IC
  • LN4912 - Ultra-Sensitive Hall Effect Switch
  • LN4915 - High Sensitivity CMOS Hall IC
  • LN4916 - High Sensitivity CMOS Hall IC
  • LN4919 - CMOS Hall IC
  • LN4990 - 2 Watt Audio Power Amplifier
  • LN4990A - 2 Watt Audio Power Amplifier
  • LN4088 - Dual 2.7W Stereo Audio Amplifier Plus Headphone Driver

Full PDF Text Transcription

Click to expand full text
Low Current Consumption, High Sensitivity CMOS Hall IC LN4913 ■ General Description The LN4913 is an integrated hall-effect sensor designed specifically to meet the requirements of low-power devices. e.g. as an On/Off switch in Cellular Flip-Phones, with battery operating voltages of 1.65V-5.5V. Precise magnetic switching points and high temperature stability are achieved through the unique design of the internal circuit. An onboard clock scheme is used to reduce the average operating current of the IC. During the operate phase the IC compares the actual magnetic field detected with the internally compensated switching points. The output Voltage is switched at the end of each operating phase.
