74AHCV17A Datasheet, Trigger, nexperia

74AHCV17A Features

  • Trigger
  • Wide supply voltage range from 1.8 V to 5.5 V
  • Typical tpd of 3.2 ns at 5 V
  • Typical VOL(p) < 0.8 V at VCC = 3.3 V, Tamb = 25 C
  • Typical VOH(v) > 2

PDF File Details

Part number:

74AHCV17A

Manufacturer:

nexperia ↗

File Size:

716.53kb

Download:

📄 Datasheet

Description:

Hex buffer schmitt trigger. The 74AHCV17A is a hex buffer with Schmitt-trigger inputs, capable of transforming slowly changing input signals into sharply define

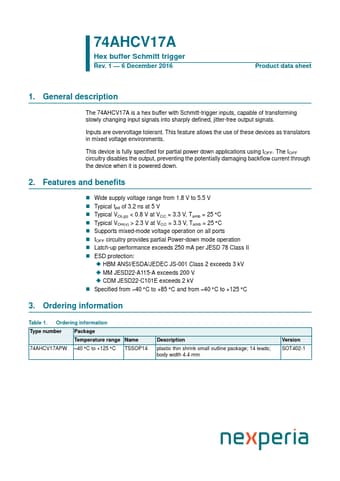

Datasheet Preview: 74AHCV17A 📥 Download PDF (716.53kb)
Page 2 of 74AHCV17A Page 3 of 74AHCV17A

74AHCV17A Application

  • Applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is
