74HC00PW, 74HC00 Quad 2-input NAND gate

nexperia

Description

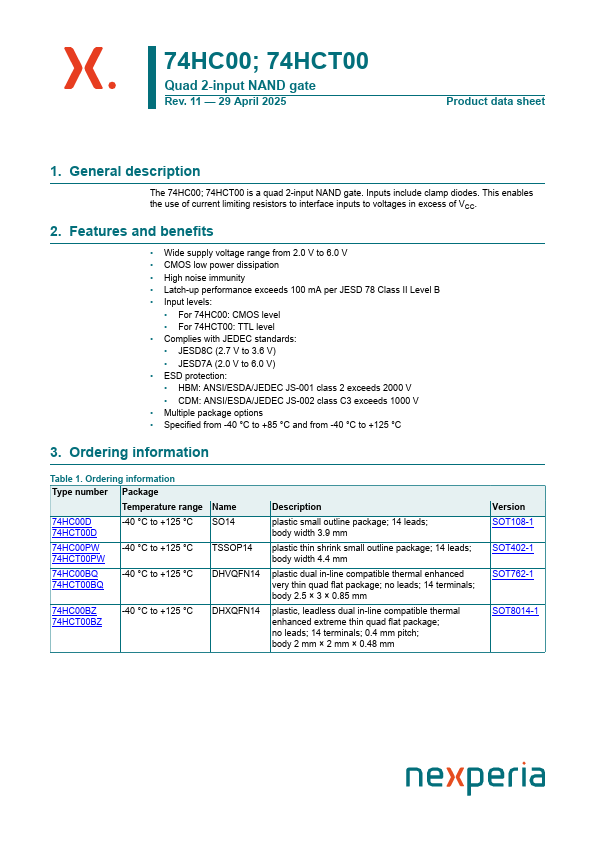

74HC00; 74HCT00 Quad 2-input NAND gate Rev.11 * 29 April 2025 Product data sheet 1.General .
The 74HC00; 74HCT00 is a quad 2-input NAND gate.

📥 Download Datasheet

74HC00PW Datasheet Preview — This datasheet PDF includes multiple part numbers: 74HC00PW, 74HC00. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 74HC00PW, 74HC00
Manufacturer: nexperia ↗
File Size: 263.27 KB
Datasheet: 74HC00-nexperia.pdf
Description: Quad 2-input NAND gate
Note: This datasheet PDF includes multiple part numbers: 74HC00PW, 74HC00.
Please refer to the document for exact specifications by model.

Features

* Wide supply voltage range from 2.0 V to 6.0 V
* CMOS low power dissipation
* High noise immunity
* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
* Input levels:
* For 74HC00: CMOS level
* For 74HCT00: TTL level
* Co
