74HC165 - 8-bit parallel-in/serial out shift register

nexperia

The 74HC165 by nexperia is a 8-bit parallel-in/serial out shift register. Below is the official datasheet preview.

📥 Download Datasheet

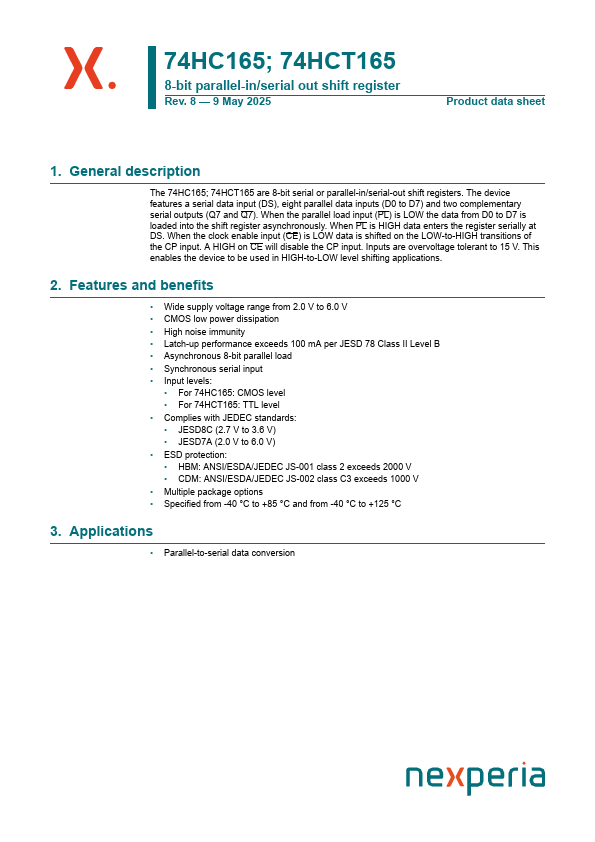

74HC165 8-bit parallel-in/serial out shift register by nexperia - Datasheet Preview — Official preview page of the 74HC165 8-bit parallel-in/serial out shift register datasheet (nexperia).

Datasheet Details

Part number	74HC165
Manufacturer	nexperia
File Size	317.10 KB
Description	8-bit parallel-in/serial out shift register
Datasheet	74HC165-nexperia.pdf

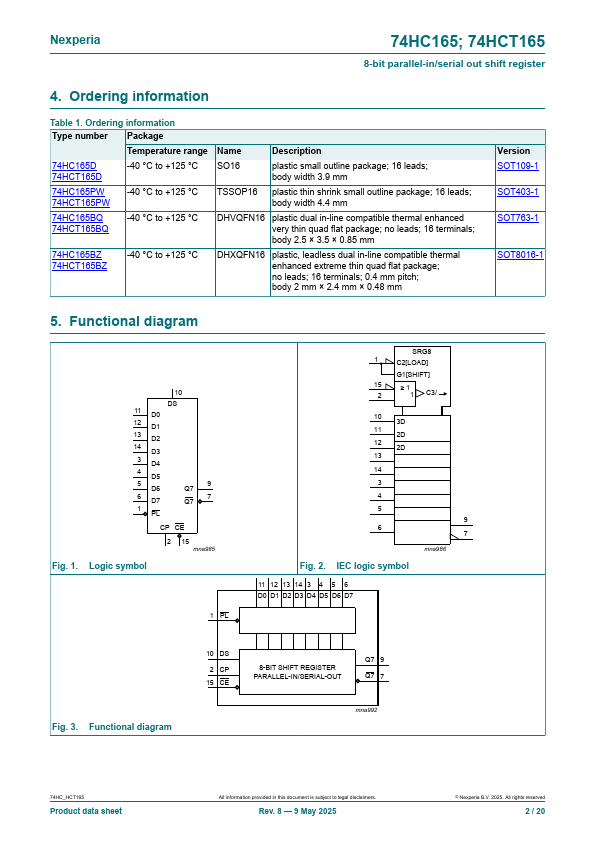

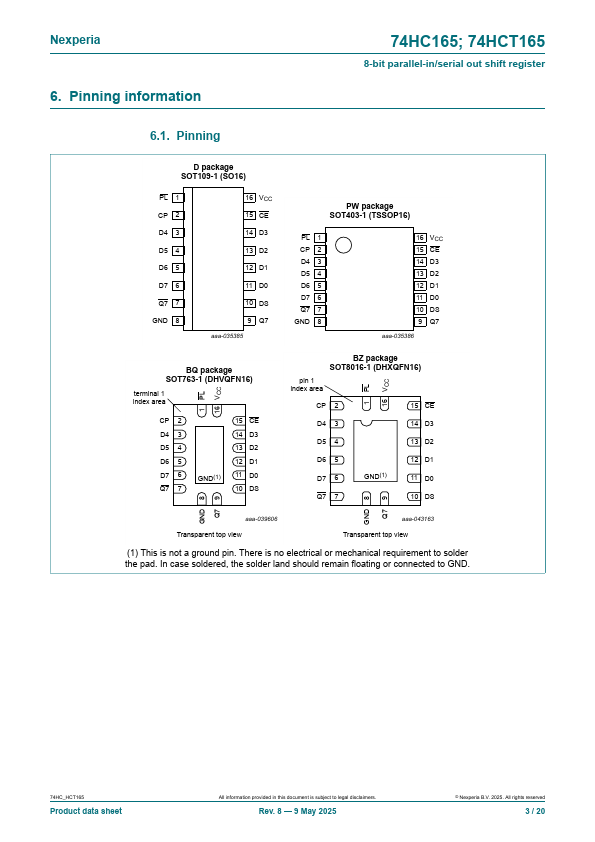

Additional preview pages of the 74HC165 datasheet.

74HC165 Product details

Description

The 74HC165; 74HCT165 are 8-bit serial or parallel-in/serial-out shift registers.

Features

Wide supply voltage range from 2.0 V to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Asynchronous 8-bit parallel load.
Synchronous serial input.
Input levels:.
For 74HC165: CMOS level.
For 74HCT165: TTL level.
Complies with JEDEC standards:.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
ESD protectio.
