74HC165D

8-bit parallel-in/serial out shift register

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Toshiba America Electronic Components 74HC165D IC 8BIT SHIFT REGISTER 16SOIC DigiKey 7500 25000 units
$0.2

74HC165D Datasheet (290.51 KB)

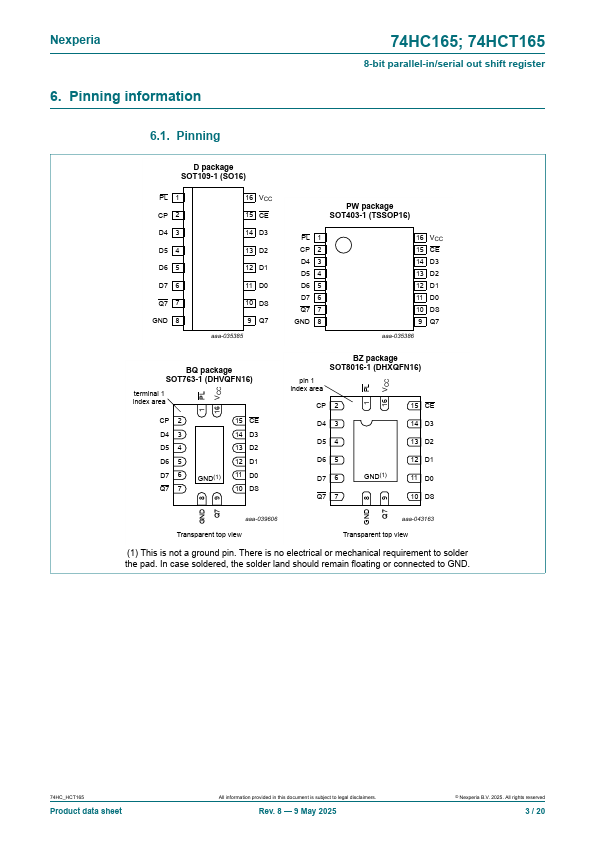

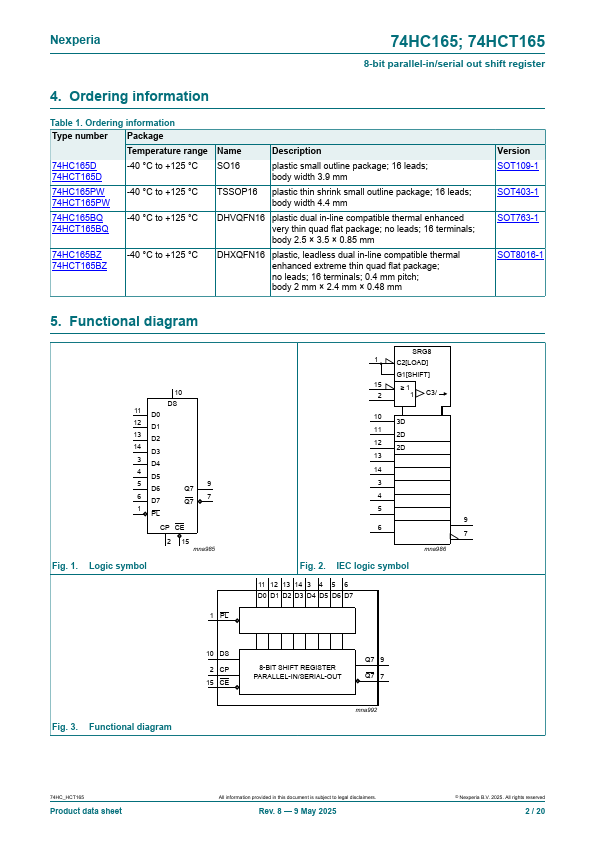

Preview of 74HC165D PDF Datasheet

Datasheet Details

Part number:

74HC165D

Manufacturer:

nexperia ↗

File Size:

290.51 KB

Description:

8-bit parallel-in/serial out shift register

74HC165D Features

* Wide supply voltage range from 2.0 to 6.0 V

* CMOS low power dissipation

* High noise immunity

* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B

* Asynchronous 8-bit parallel load

* Synchronous serial input

* Input levels:

74HC165D General Description

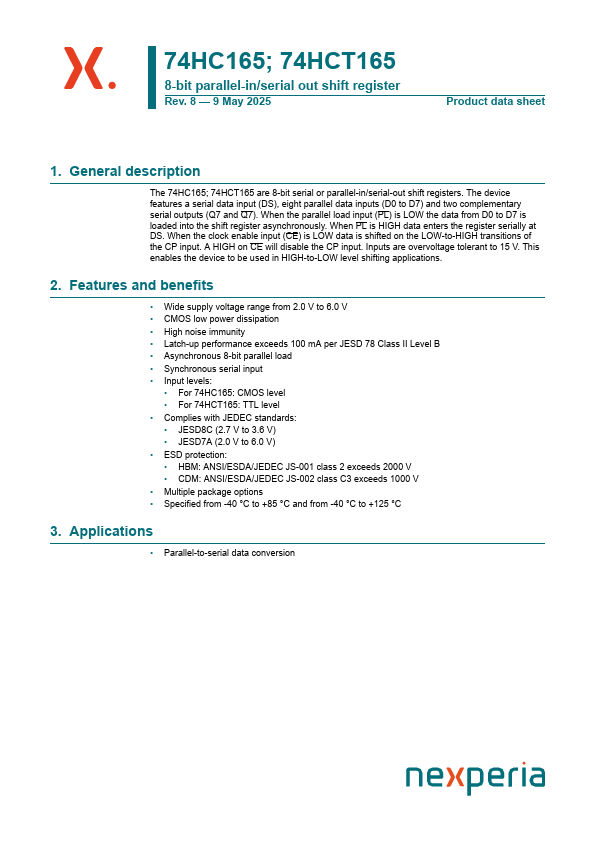

The 74HC165; 74HCT165 are 8-bit serial or parallel-in/serial-out shift registers. The device features a serial data input (DS), eight parallel data inputs (D0 to D7) and two complementary serial outputs (Q7 and Q7). When the parallel load input (PL) is LOW the data from D0 to D7 is loaded into the s.

📁 Related Datasheet

74HC165 - 8-Bit Parallel-Load Shift Registers (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community SN54HC165, SN74HC165 SCLS116H – DECEMBER 1982 – REVISED DECE.

74HC165 - 8-bit parallel-in/serial out shift register (nexperia)
74HC165; 74HCT165 8-bit parallel-in/serial out shift register Rev. 7 — 1 September 2021 Product data sheet 1. General description The 74HC165; 74HCT.

74HC165 - 8-bit parallel-in/serial out shift register (NXP)
74HC165; 74HCT165 8-bit parallel-in/serial out shift register Rev. 03 — 14 March 2008 Product data sheet 1. General description The 74HC165; 74HCT16.

74HC165-Q100 - 8-bit parallel-in/serial out shift register (nexperia)
.

74HC165D - 8-Bit Shift Register (Toshiba)
CMOS Digital Integrated Circuits Silicon Monolithic 74HC165D 74HC165D 1. Functional Description • 8-Bit Shift Register (P-IN, S-OUT) 2. General The .

74HC160 - Presettable synchronous BCD decade counter (nexperia)
74HC160 Presettable synchronous BCD decade counter; asynchronous reset Rev. 4 — 27 March 2019 Product data sheet 1. General description The 74HC1.
