74HCT04BQ-Q100

Hex inverter

74HCT04BQ-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from -40 °C to +85 °C and from -40 °C to +125 °C

* Wide supply voltage range from 2.0 V to 6.0 V

* CMOS low power dissipation

* High noise immunity

* Latch-up performa

74HCT04BQ-Q100 General Description

The 74HC04-Q100; 74HCT04-Q100 is a hex inverter. The inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for.

74HCT04BQ-Q100 Datasheet (242.14 KB)

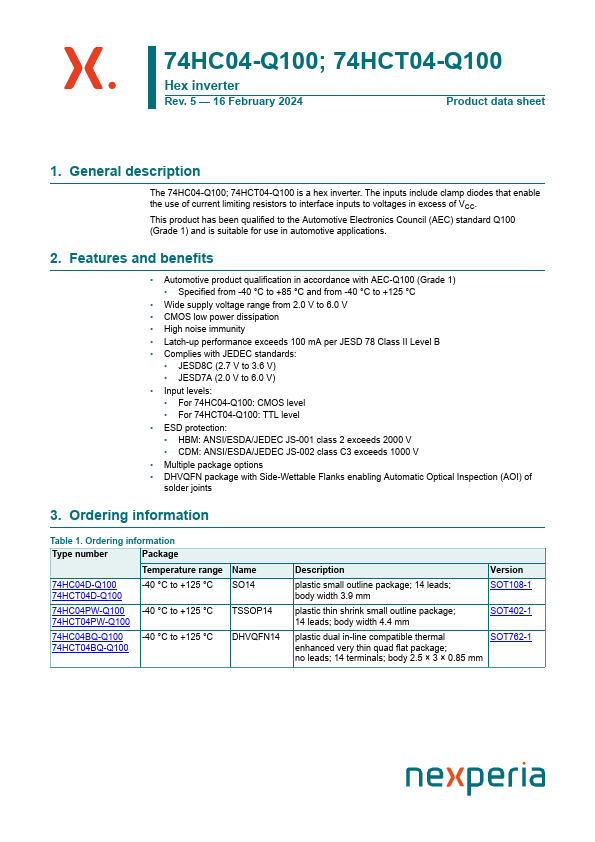

Preview of 74HCT04BQ-Q100 PDF

Datasheet Details

Part number:

74HCT04BQ-Q100

Manufacturer:

nexperia ↗

File Size:

242.14 KB

Description:

Hex inverter.

📁 Related Datasheet

74HCT04BQ Hex inverter (nexperia)

74HCT04 Hex inverter (NXP Semiconductors)

74HCT04 HEX INVERTERS (Diodes)

74HCT04 Hex inverter (nexperia)

74HCT04-Q100 Hex inverter (NXP Semiconductors)

74HCT04-Q100 Hex inverter (nexperia)

74HCT04D Hex Inverter (Toshiba)

74HCT04D Hex inverter (nexperia)

74HCT04D-Q100 Hex inverter (nexperia)

74HCT04PW-Q100 Hex inverter (nexperia)

TAGS

74HCT04BQ-Q100 Hex inverter nexperia

Image Gallery

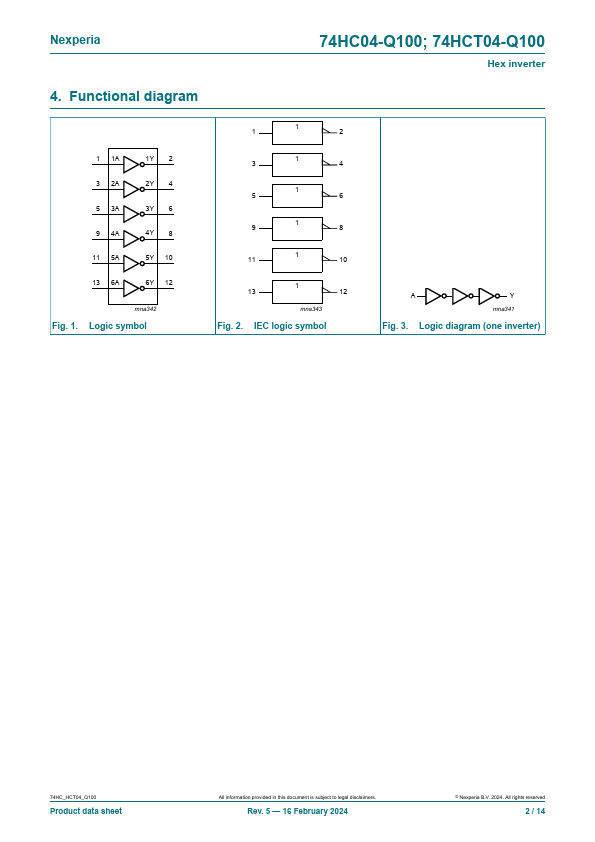

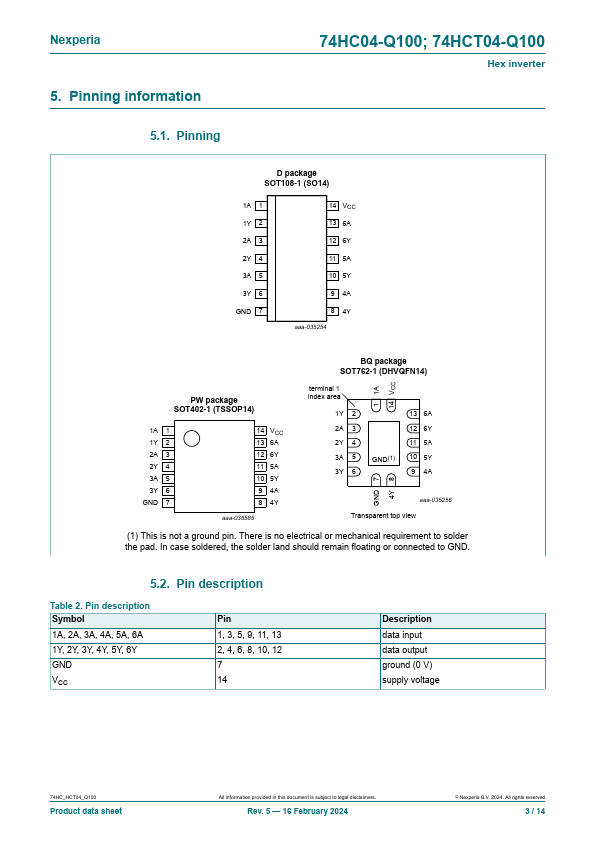

74HCT04BQ-Q100 Datasheet Preview Page 2 74HCT04BQ-Q100 Datasheet Preview Page 3
