74HCT04D-Q100, 74HC04-Q100 Hex inverter

nexperia

Description

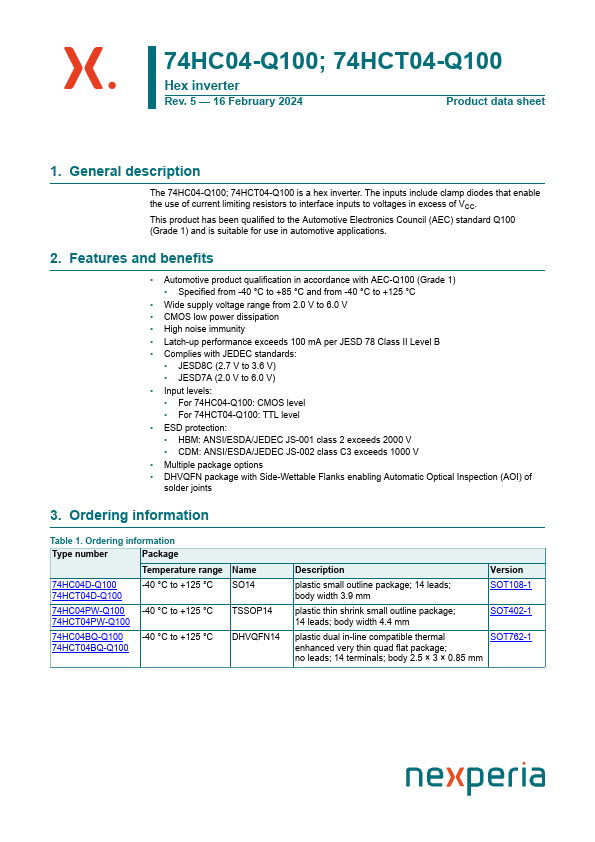

74HC04-Q100; 74HCT04-Q100 Hex inverter Rev.5 * 16 February 2024 Product data sheet 1.General .
The 74HC04-Q100; 74HCT04-Q100 is a hex inverter.

📥 Download Datasheet

74HCT04D-Q100 Datasheet Preview — This datasheet PDF includes multiple part numbers: 74HCT04D-Q100, 74HC04-Q100. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 74HCT04D-Q100, 74HC04-Q100
Manufacturer: nexperia ↗
File Size: 242.14 KB
Datasheet: 74HC04-Q100-nexperia.pdf
Description: Hex inverter
Note: This datasheet PDF includes multiple part numbers: 74HCT04D-Q100, 74HC04-Q100.
Please refer to the document for exact specifications by model.

Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)
* Specified from -40 °C to +85 °C and from -40 °C to +125 °C
* Wide supply voltage range from 2.0 V to 6.0 V
* CMOS low power dissipation
* High noise immunity
* Latch-up performa
