74HCT4017BQ

Johnson decade counter

nexperia

74HCT4017BQ Features

* Wide supply voltage range from 2.0 V to 6.0 V

* CMOS low power dissipation

* High noise immunity

* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B

* Complies with JEDEC standards:

* JESD8C (2.7 V to 3.6 V)

* JESD7A (2.0 V to

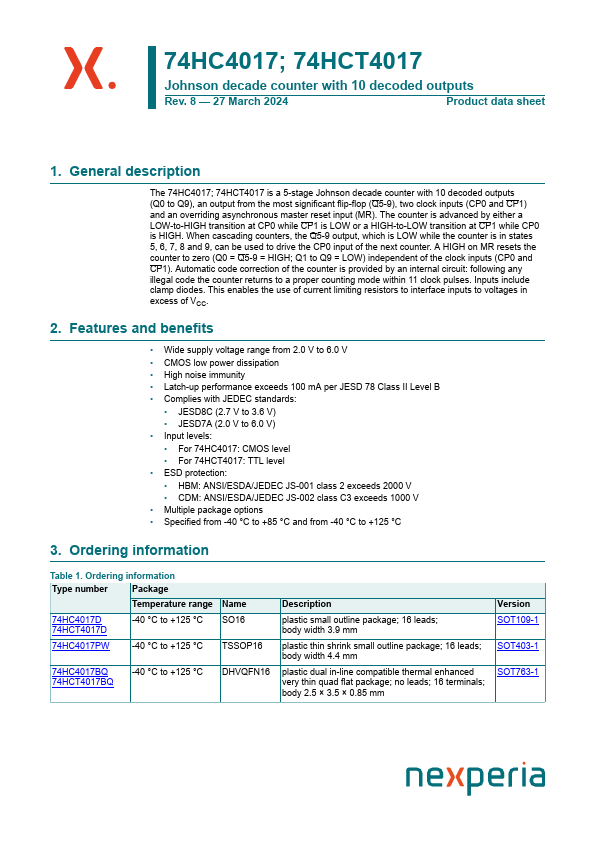

74HCT4017BQ General Description

The 74HC4017; 74HCT4017 is a 5-stage Johnson decade counter with 10 decoded outputs (Q0 to Q9), an output from the most significant flip-flop (Q5-9), two clock inputs (CP0 and CP1) and an overriding asynchronous master reset input (MR). The counter is advanced by either a LOW-to-HIGH transition at C.

74HCT4017BQ Datasheet (305.30 KB)
