74HCT4017D, 74HC4017 Datasheet - nexperia

74HCT4017D Johnson decade counter

The 74HC4017; 74HCT4017 is a 5-stage Johnson decade counter with 10 decoded outputs (Q0 to Q9), an output from the most significant flip-flop (Q5-9), two clock inputs (CP0 and CP1) and an overriding asynchronous master reset input (MR). The counter is advanced by either a LOW-to-HIGH transition at C.

74HCT4017D Features

* Wide supply voltage range from 2.0 V to 6.0 V

* CMOS low power dissipation

* High noise immunity

* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B

* Complies with JEDEC standards:

* JESD8C (2.7 V to 3.6 V)

* JESD7A (2.0 V to

74HC4017-nexperia.pdf

This datasheet PDF includes multiple part numbers: 74HCT4017D, 74HC4017. Please refer to the document for exact specifications by model.

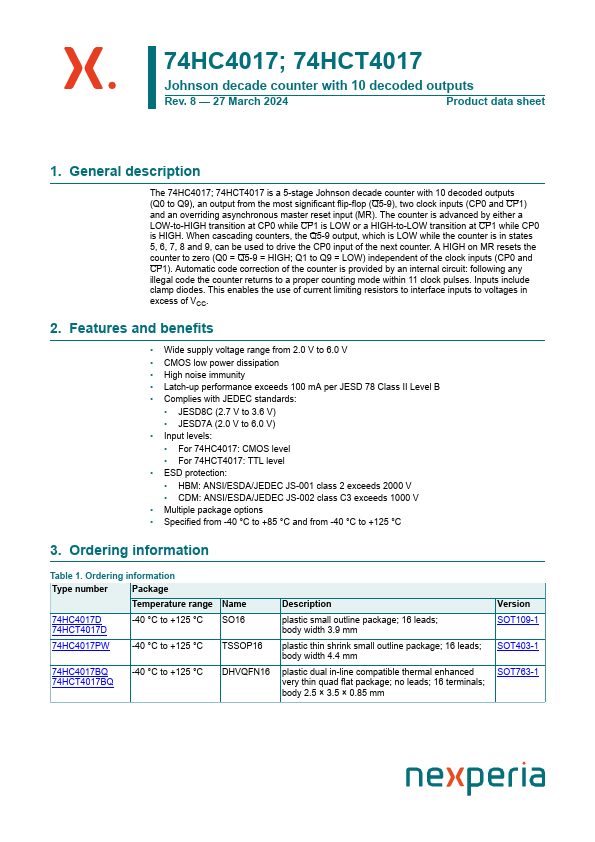

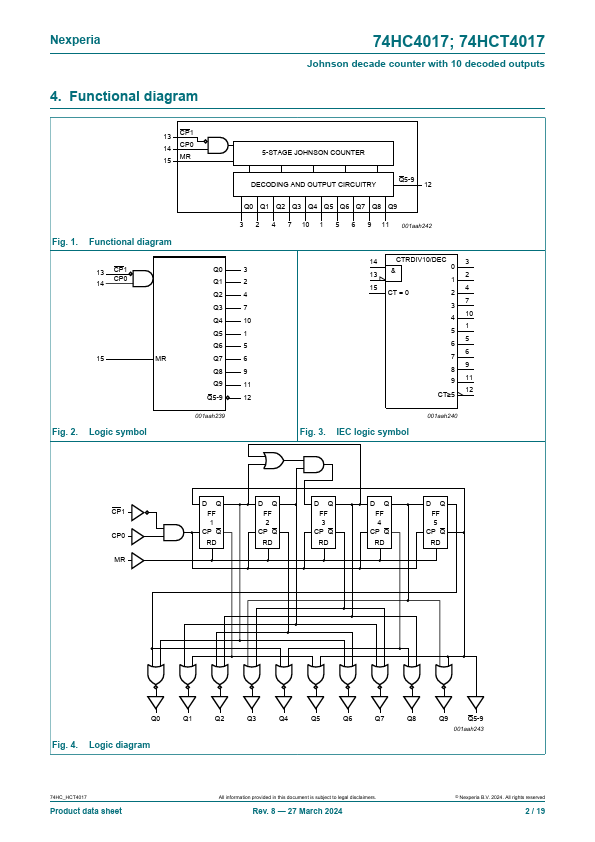

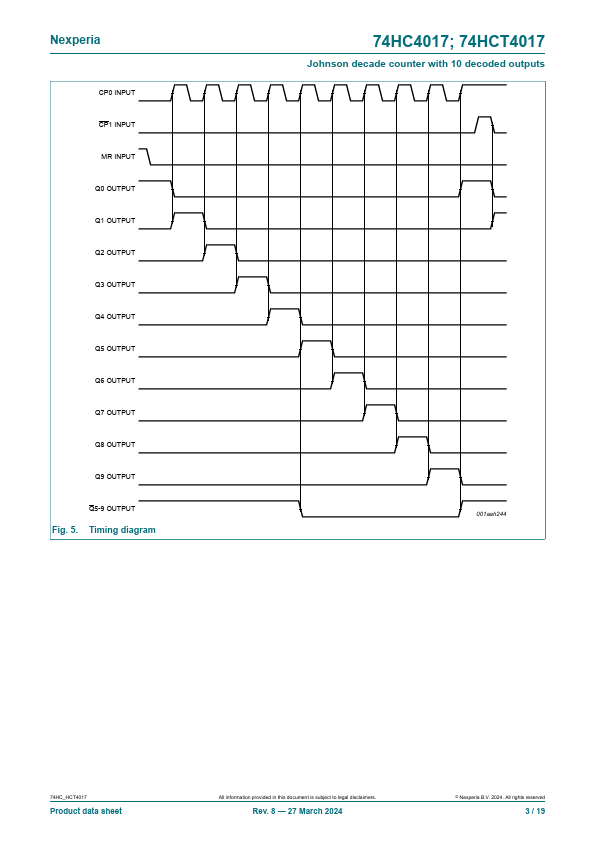

74HCT4017D Datasheet Preview Page 2 74HCT4017D Datasheet Preview Page 3
