74LV00BQ Datasheet, Gate, nexperia

74LV00BQ Features

• Gate
• Wide operating voltage: 1.0 V to 5.5 V
• Optimized for low voltage applications: 1.0 V to 3.6 V
• Accepts TTL input levels between VCC = 2.7 V and VCC = 3.6 V

PDF File Details

Part number:

74LV00BQ

Manufacturer:

nexperia ↗

File Size:

227.91kb

Download:

📄 Datasheet

Description:

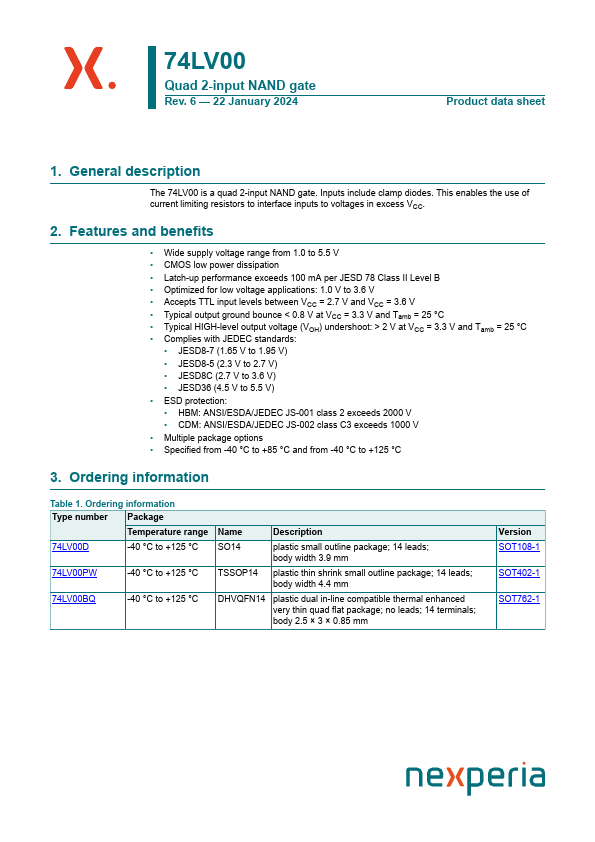

Quad 2-input nand gate. The 74LV00 is a low-voltage Si-gate CMOS device that is pin and function compatible with 74HC00 and 74HCT00. The 74LV00 provides a q

74LV00BQ Application

• Applications 1.0 V to 3.6 V
• Accepts TTL input levels between VCC = 2.7 V and VCC = 3.6 V
• Typical output ground bounce < 0.8 V a
