74LV00D Datasheet, Gate, nexperia

74LV00D Features

  • Gate
  • Wide supply voltage range from 1.0 to 5.5 V
  • CMOS low power dissipation
  • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
  • Optimized

PDF File Details

Part number:

74LV00D

Manufacturer:

nexperia ↗

File Size:

227.91kb

Download:

📄 Datasheet

Description:

Quad 2-input nand gate. The 74LV00 is a quad 2-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface

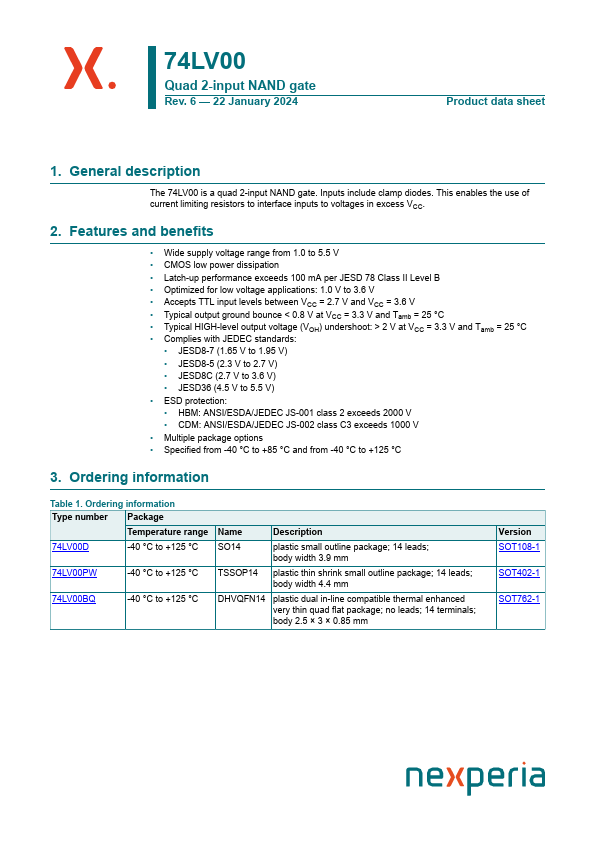

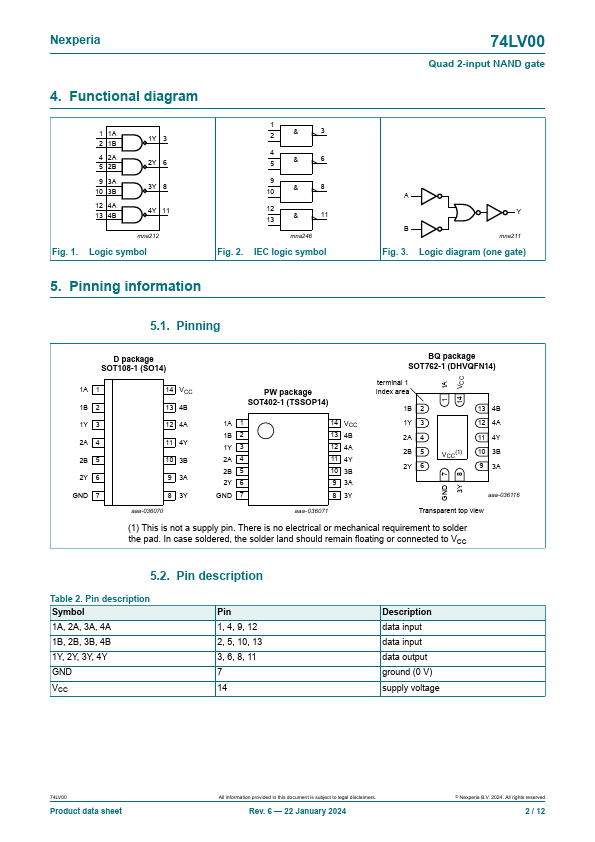

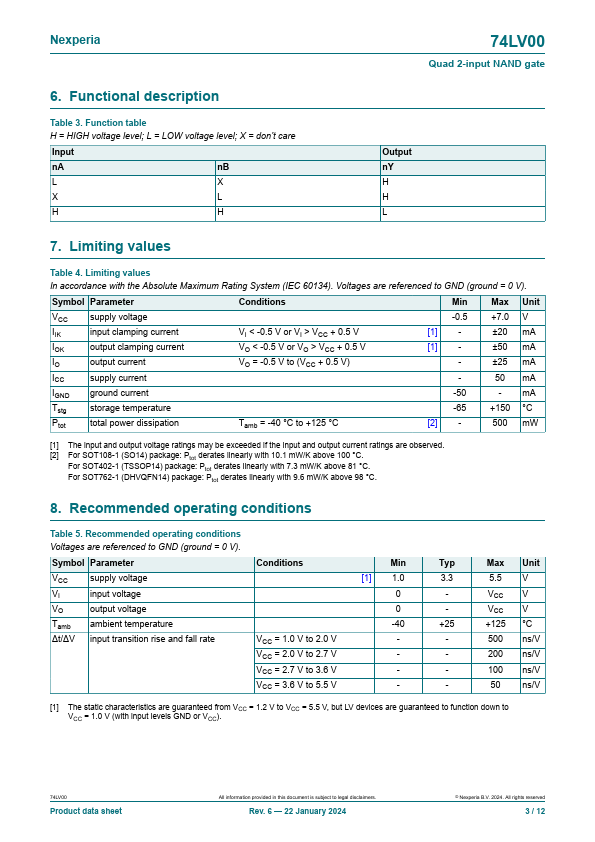

Datasheet Preview: 74LV00D 📥 Download PDF (227.91kb)
Page 2 of 74LV00D Page 3 of 74LV00D

74LV00D Application

  • Applications 1.0 V to 3.6 V
  • Accepts TTL input levels between VCC = 2.7 V and VCC = 3.6 V
  • Typical output ground bounce < 0.8 V a
