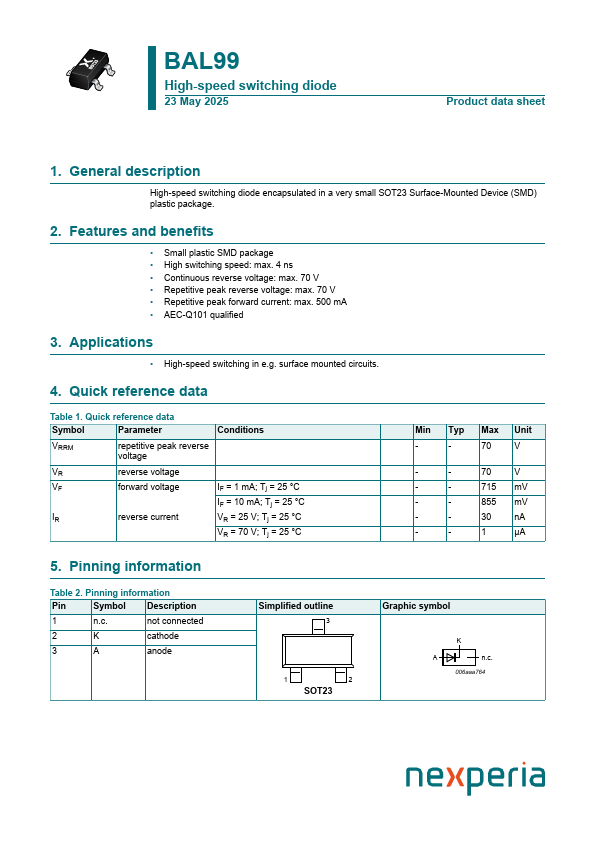

BAL99
description
High-speed switching diode encapsulated in a very small SOT23 Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Small plastic SMD package
- High switching speed: max. 4 ns
- Continuous reverse voltage: max. 70 V
- Repetitive peak reverse voltage: max. 70 V
- Repetitive peak forward current: max. 500 m A
- AEC-Q101 qualified
3. Applications
- High-speed switching in e.g. surface mounted circuits.
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Conditions
VRRM repetitive peak reverse voltage
VR reverse voltage
VF forward voltage
IF = 1 m A; Tj = 25 °C
IF = 10 m A; Tj = 25 °C
IR reverse current
VR = 25 V; Tj = 25 °C
VR = 70 V; Tj = 25 °C
Min Typ Max Unit
- -
- -
- -
715 m V
- -
855 m V
- -
30 n A
- -
µA
5. Pinning information
Table 2. Pinning...
