BAS29-Q - General purpose switching diode

nexperia

📥 Download Datasheet

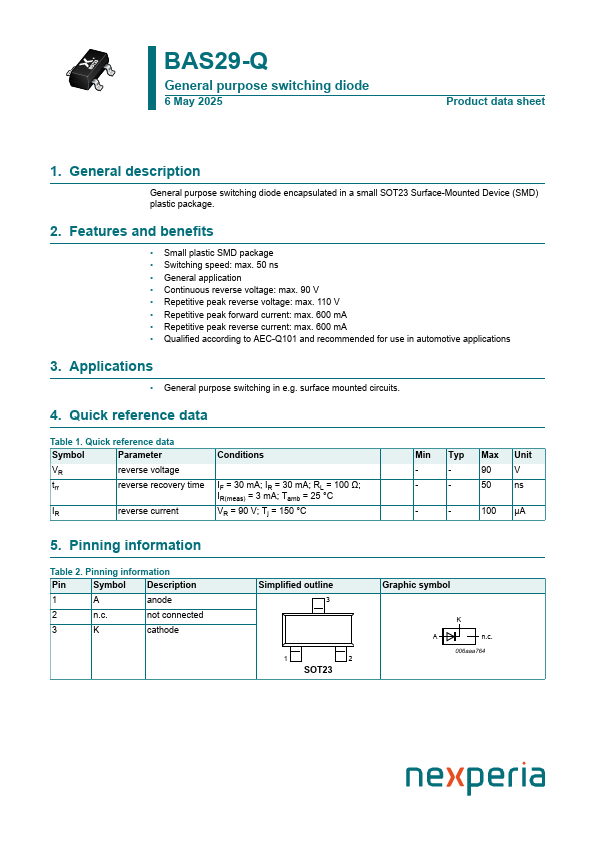

BAS29-Q Datasheet Preview — Preview of BAS29-Q PDF

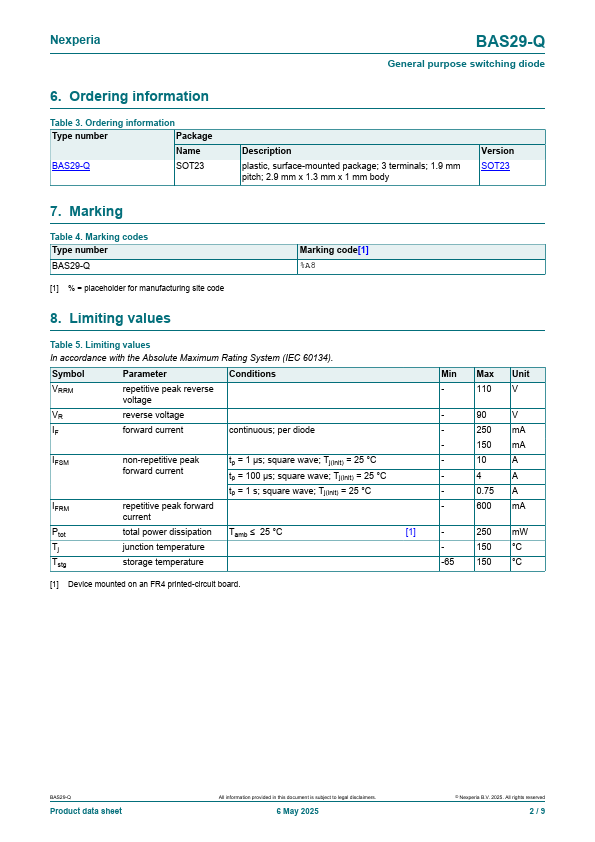

datasheet Preview Page 2

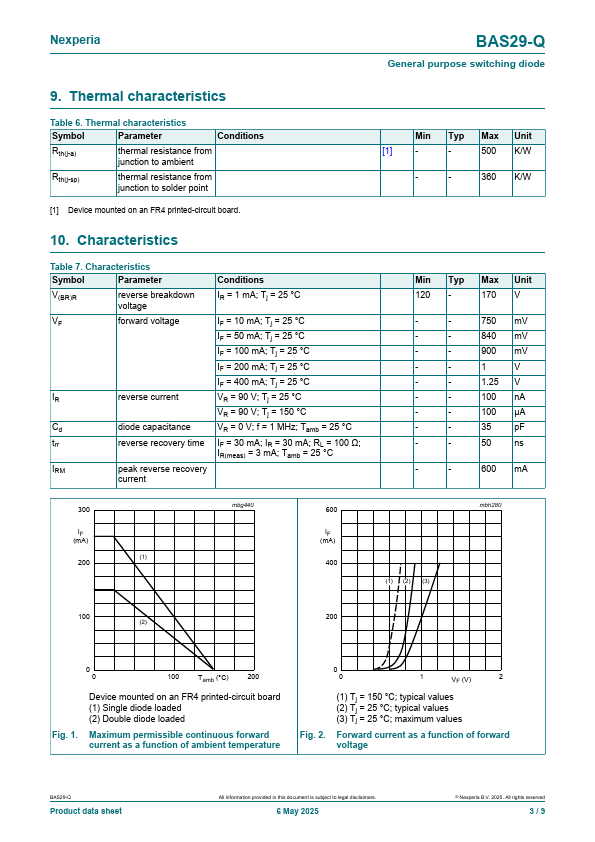

datasheet Preview Page 3

Datasheet Details

Part number: BAS29-Q
Manufacturer: nexperia ↗
File Size: 191.32 KB
Datasheet: BAS29-Q-nexperia.pdf
Description: General purpose switching diode

BAS29-Q Product details

Description

General purpose switching diode encapsulated in a small SOT23 Surface-Mounted Device (SMD) plastic package.

Features

Small plastic SMD package.
Switching speed: max. 50 ns.
General application.
Continuous reverse voltage: max. 90 V.
Repetitive peak reverse voltage: max. 110 V.
Repetitive peak forward current: max. 600 mA.
Repetitive peak reverse current: max. 600 mA.
Qualified according to AEC-Q101 and recommended for use in automotive.
