BAS31-Q - General purpose switching diode

BAS31-Q Description

BAS31-Q General purpose switching diode 6 May 2025 Product data sheet 1.General .
General purpose switching diode, encapsulated in a small SOT23 Surface-Mounted Device (SMD) plastic package. Small.

BAS31-Q Features

* Small plastic SMD package
* Switching speed: max. 50 ns

BAS31-Q Applications

* 3. Applications
* General purpose switching in e. g. surface mounted circuits. 4. Quick reference data Table 1. Quick reference data Symbol Parameter VR reverse voltage trr reverse recovery time IR reverse current Conditions IF = 30 mA; IR = 30 mA; RL = 100 Ω; IR(meas) = 3 mA; Tam

📥 Download Datasheet

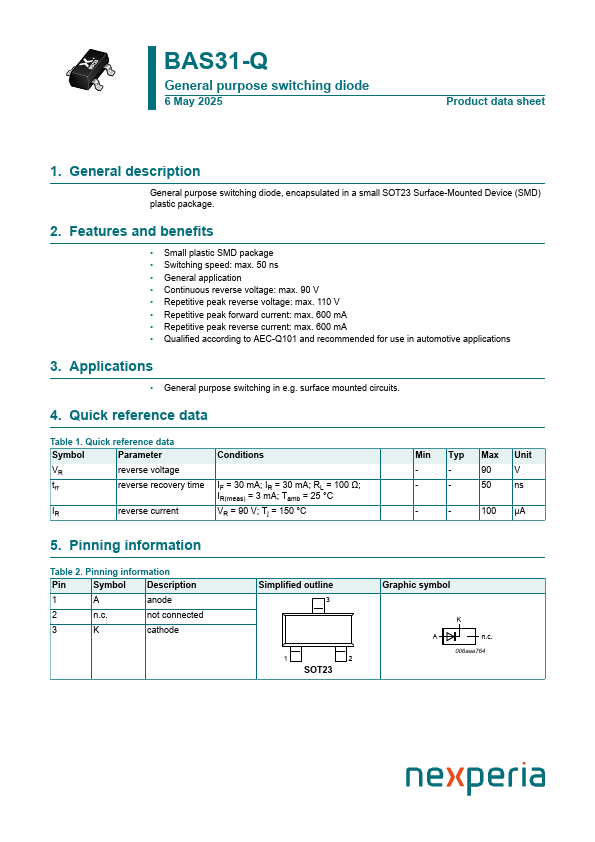

Preview of BAS31-Q PDF

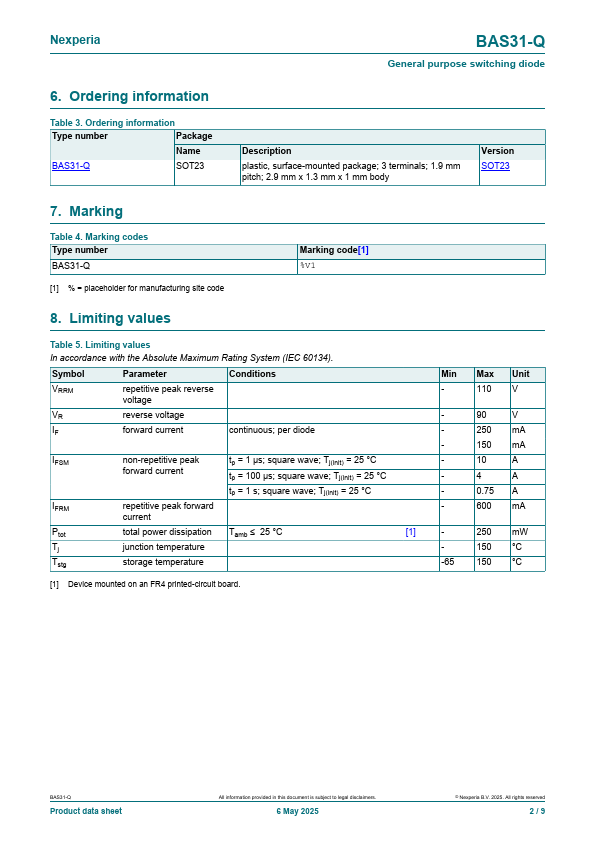

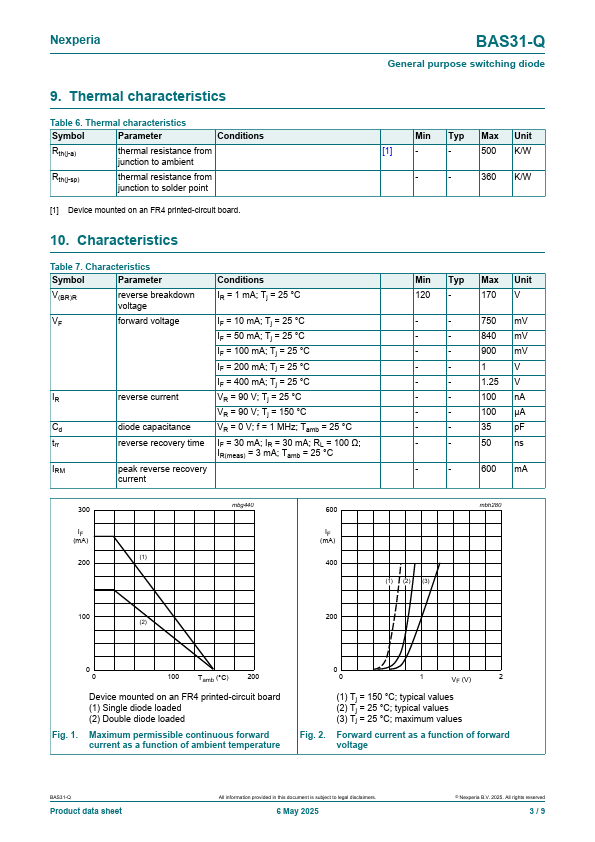

datasheet Preview Page 2 datasheet Preview Page 3
