BC807-40QA Datasheet - nexperia

500mA PNP Transistor

BC807-40QA Features

* General-purpose transistor

* Two current gain selections

* Low package height of 0.37 mm

* AEC-Q101 qualified 1.3 Applications

* General-purpose switching and amplification

* Mobile applications 1.4 Quick reference data Table 2. Quick reference data Symbol Parameter Co

BC807-40QA General Description

500 mA PNP general-purpose transistors in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads. Table 1. Product overview Type number Package Nexperia BC807-25QA BC807-40QA DFN1010D-3 (SOT1215) JEITA - NPN complement B.

BC807-40QA Datasheet (819.57 KB)

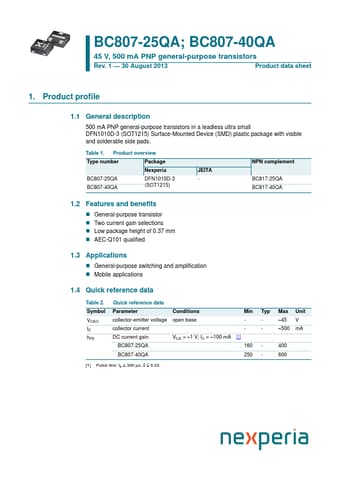

Preview of BC807-40QA PDF

Datasheet Details

Part number:

BC807-40QA

Manufacturer:

nexperia ↗

File Size:

819.57 KB

Description:

500ma pnp transistor.
BC807-25QA; BC807-40QA 45 V, 500 mA PNP general-purpose transistors Rev. 1 30 August 2013 Product data sheet 1. Product profile 1.1 Gen.
