BC807-40QC-Q, BC807-16QC-Q Datasheet - nexperia

BC807-40QC-Q 500mA PNP general-purpose transistors

PNP general-purpose transistor in an ultra small DFN1412D-3 (SOT8009) leadless SurfaceMounted Device (SMD) plastic package with side-wettable flanks. Table 1. Product overview Type number Package Name BC807-16QC-Q DFN1412D-3 BC807-25QC-Q BC807-40QC-Q JEDEC MO-340CA Version SOT8009 NPN co.

BC807-40QC-Q Features

* High power dissipation capability

* High current

* Three current gain selections

* Suitable for Automatic Optical Inspection (AOI) of solder joint

* Smaller footprint compared to conventional leaded SMD packages

* Low package height of 0.5 mm

BC807-16QC-Q-nexperia.pdf

This datasheet PDF includes multiple part numbers: BC807-40QC-Q, BC807-16QC-Q. Please refer to the document for exact specifications by model.

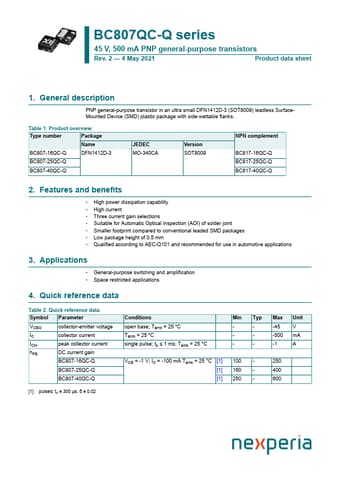

BC807-40QC-Q Datasheet Preview Page 2 BC807-40QC-Q Datasheet Preview Page 3

Datasheet Details

Part number:

BC807-40QC-Q, BC807-16QC-Q

Manufacturer:

nexperia ↗

File Size:

327.06 KB

Description:

500ma pnp general-purpose transistors.

Note:

This datasheet PDF includes multiple part numbers: BC807-40QC-Q, BC807-16QC-Q.
Please refer to the document for exact specifications by model.
