BC807K-25, BC807K 500mA PNP general-purpose transistors

BC807K-25 Description

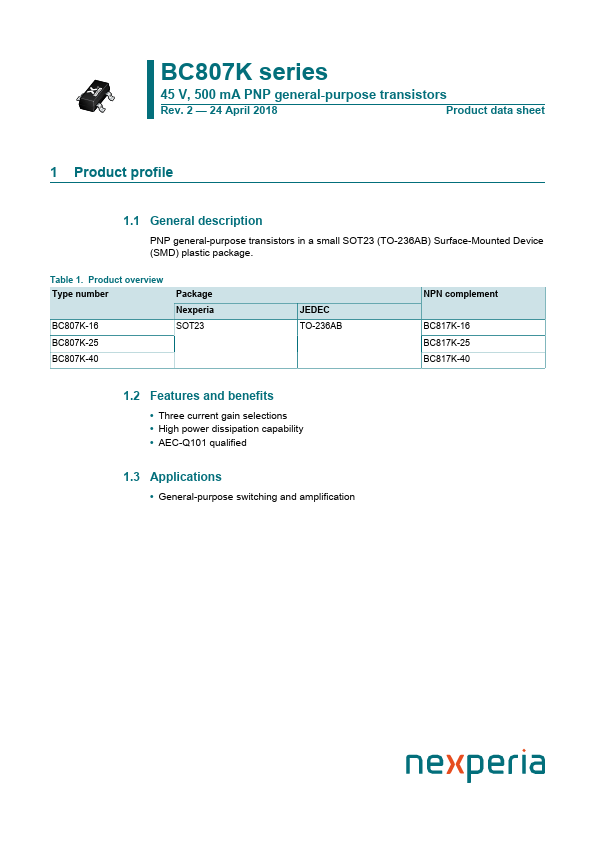

BC807K series 45 V, 500 mA PNP general-purpose transistors Rev.2 * 24 April 2018 Product data sheet 1 Product profile 1.1 General descri.
PNP general-purpose transistors in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

BC807K-25 Features

* Three current gain selections
* High power dissipation capability

BC807K-25 Applications

* General-purpose switching and amplification Nexperia BC807K series 45 V, 500 mA PNP general-purpose transistors 1.4 Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions VCEO collector-emitter voltage open base IC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BC807K-25, BC807K. Please refer to the document for exact specifications by model.

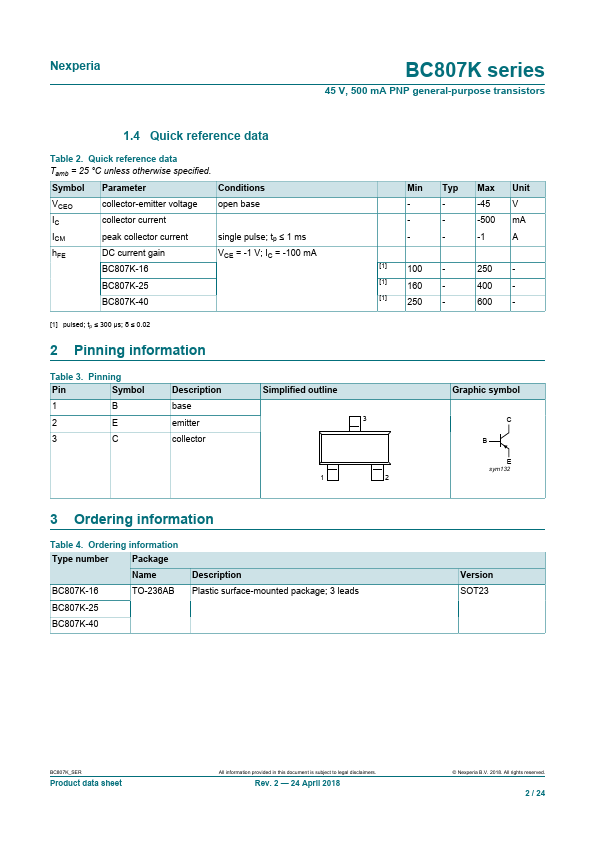

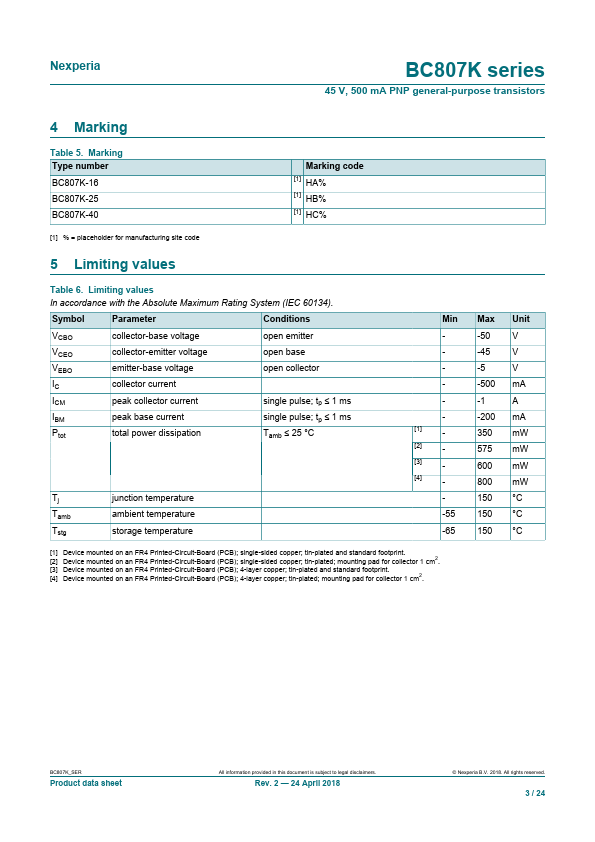

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC807K-25, BC807K
Manufacturer
nexperia ↗
File Size
336.90 KB
Datasheet
BC807K-nexperia.pdf
Description
500mA PNP general-purpose transistors
Note
This datasheet PDF includes multiple part numbers: BC807K-25, BC807K.
Please refer to the document for exact specifications by model.
