BC807K-25-Q, BC807K-16-Q 45V 500mA PNP general-purpose transistors

BC807K-25-Q Description

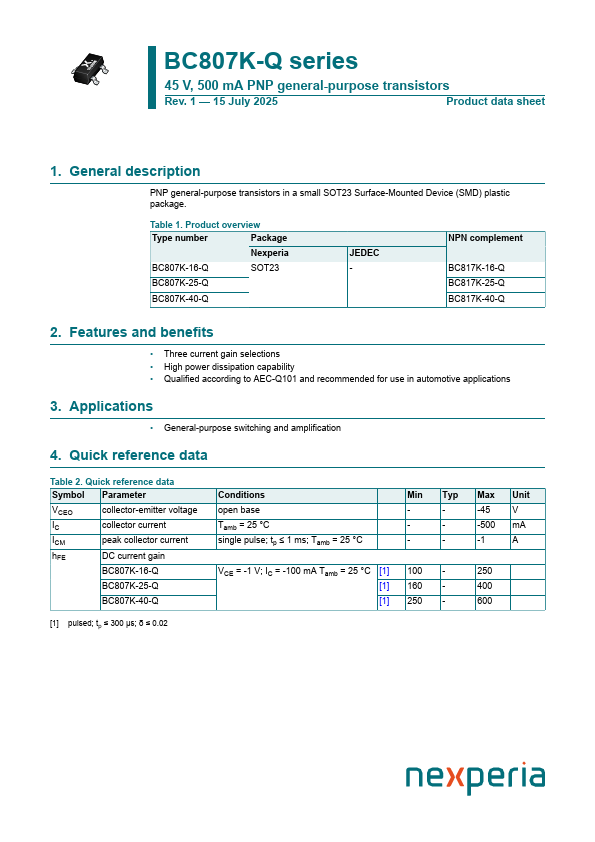

BC807K-Q series 45 V, 500 mA PNP general-purpose transistors Rev.1 * 15 July 2025 Product data sheet 1.General .
PNP general-purpose transistors in a small SOT23 Surface-Mounted Device (SMD) plastic package.

BC807K-25-Q Features

* Three current gain selections
* High power dissipation capability

BC807K-25-Q Applications

* 3. Applications
* General-purpose switching and amplification 4. Quick reference data Table 2. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current ICM peak collector current hFE DC current gain BC807K-16-Q BC807K-25-Q BC807K-40-Q [1] pulse

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BC807K-25-Q, BC807K-16-Q. Please refer to the document for exact specifications by model.

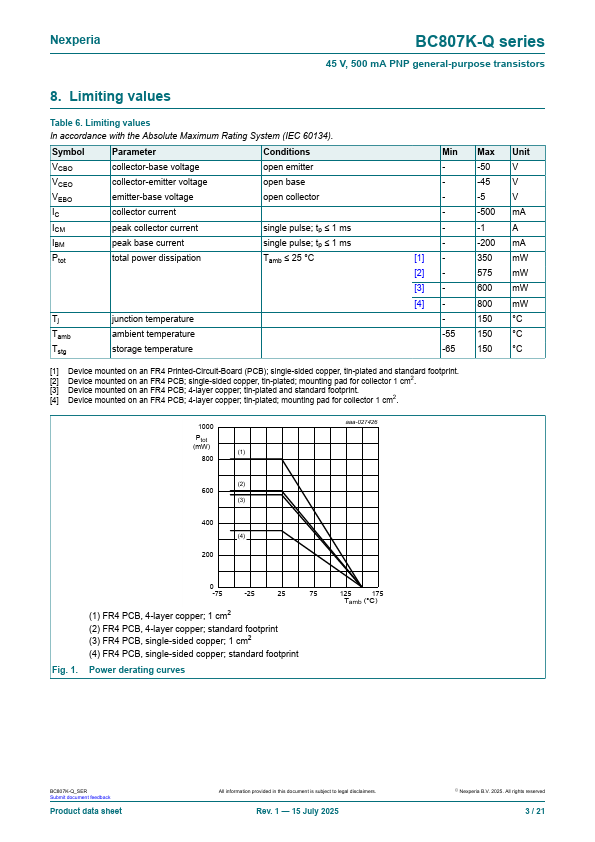

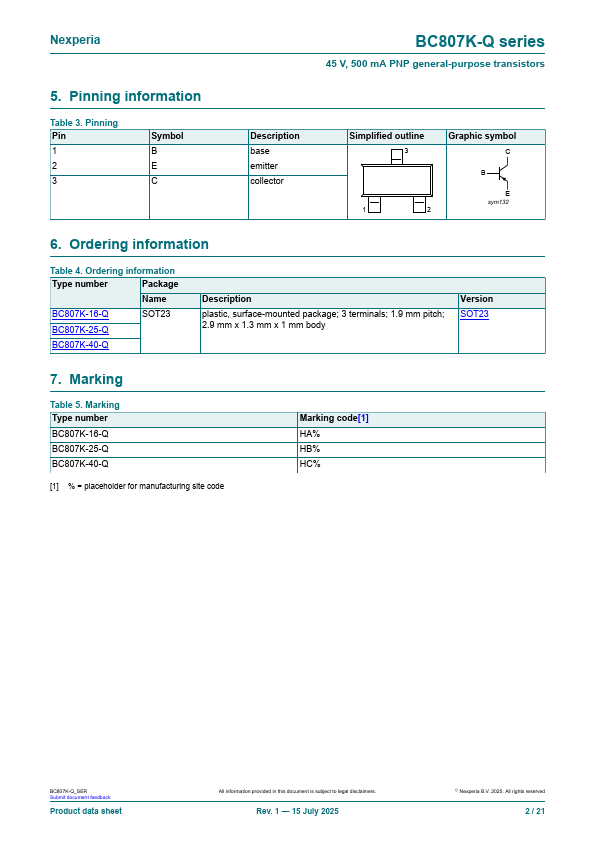

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC807K-25-Q, BC807K-16-Q
Manufacturer
nexperia ↗
File Size
357.45 KB
Datasheet
BC807K-16-Q-nexperia.pdf
Description
45V 500mA PNP general-purpose transistors
Note
This datasheet PDF includes multiple part numbers: BC807K-25-Q, BC807K-16-Q.
Please refer to the document for exact specifications by model.
