BC847C-Q, BC847-Q, 100mA NPN general-purpose transistors

BC847x-Q series 45 V, 100 mA NPN general-purpose transistors Rev.2 * 24 June 2021 Product data sheet 1.General .
NPN general-purpose transistors in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

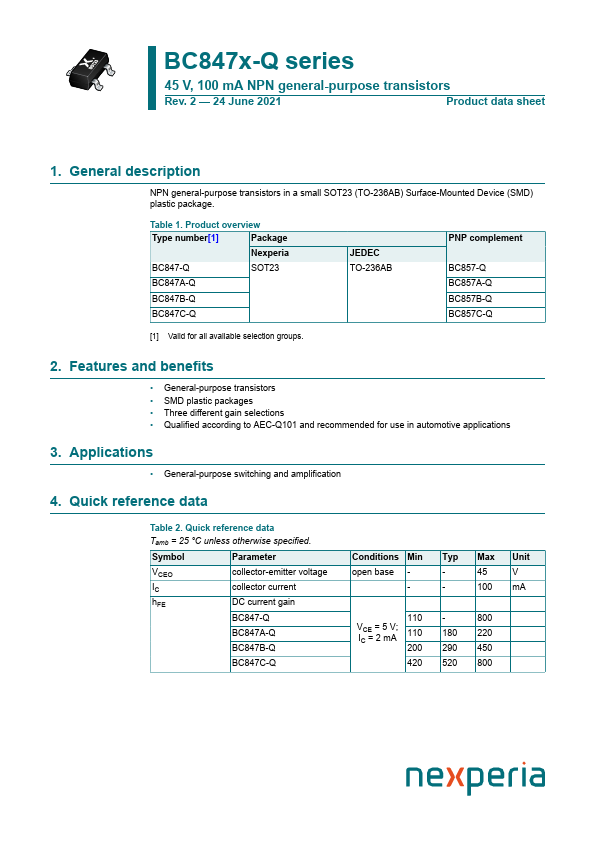

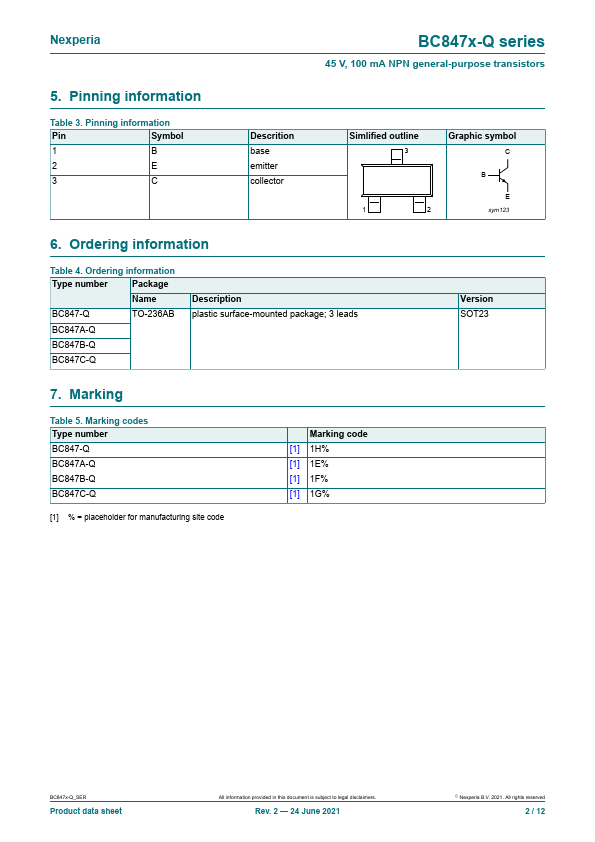

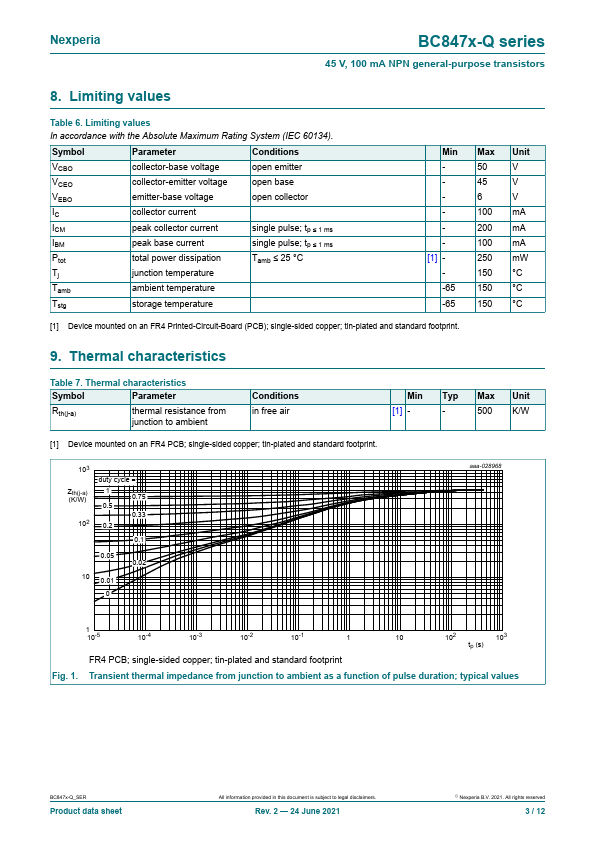

Datasheet Preview Page 1 BC847C-Q Datasheet Preview Page 2 Datasheet Preview Page 3

Features

* General-purpose transistors
* SMD plastic packages
* Three different gain selections

Applications

* 3. Applications
* General-purpose switching and amplification 4. Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter VCEO IC hFE collector-emitter voltage collector current DC current gain BC847-Q BC847A-Q BC847B-Q BC847C-Q

BC847-Q-nexperia.pdf

This datasheet PDF includes multiple part numbers: BC847C-Q, BC847-Q. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BC847C-Q, BC847-Q

Manufacturer:

nexperia ↗

File Size:

220.86 KB

Description:

100mA NPN general-purpose transistors

Note:

This datasheet PDF includes multiple part numbers: BC847C-Q, BC847-Q.
Please refer to the document for exact specifications by model.
