BC847CW, BC847 100mA NPN general-purpose transistors

BC847CW Description

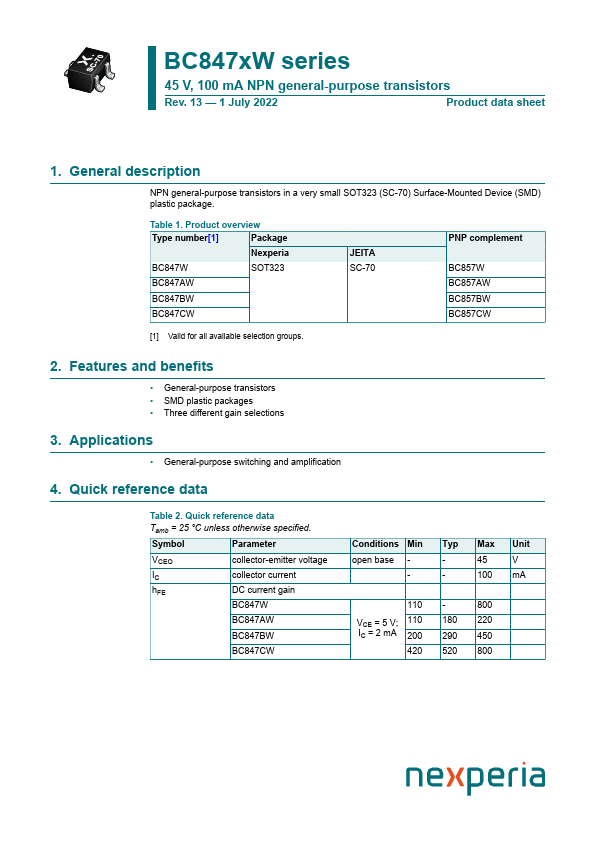

BC847xW series 45 V, 100 mA NPN general-purpose transistors Rev.13 * 1 July 2022 Product data sheet 1.General .
NPN general-purpose transistors in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

BC847CW Features

* General-purpose transistors
* SMD plastic packages

BC847CW Applications

* General-purpose switching and amplification 4. Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain BC847W BC847AW BC847BW BC847CW Conditions Min T

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BC847CW, BC847. Please refer to the document for exact specifications by model.

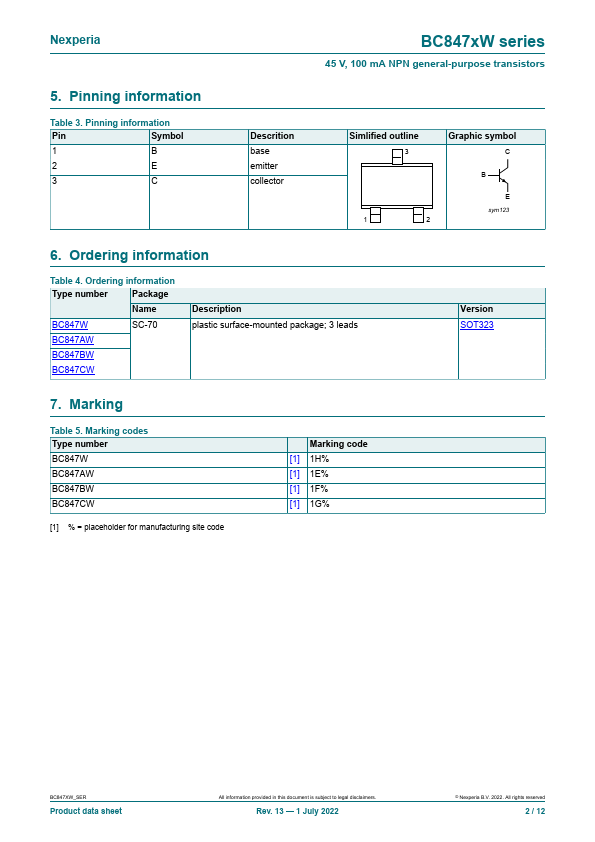

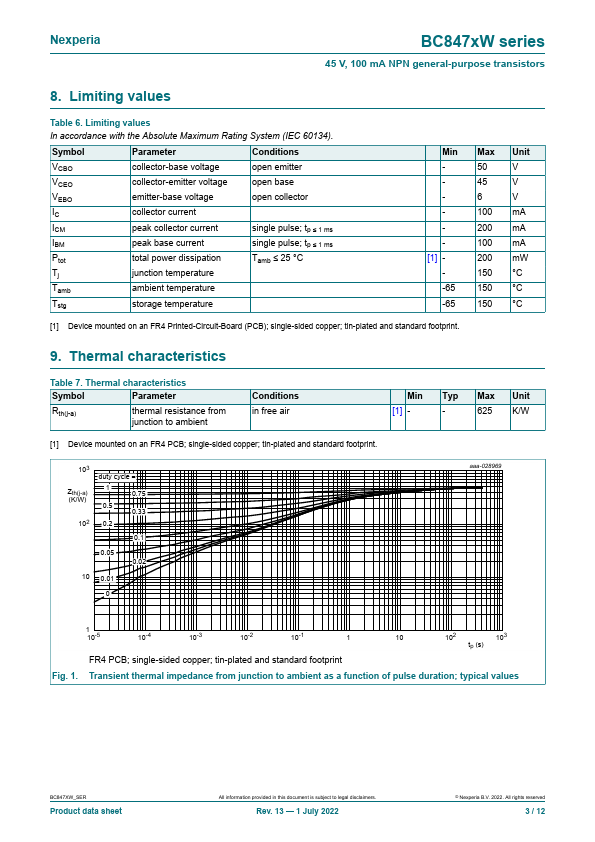

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC847CW, BC847
Manufacturer
nexperia ↗
File Size
228.64 KB
Datasheet
BC847_PhilipsSemiconductors.pdf
Description
100mA NPN general-purpose transistors
Note
This datasheet PDF includes multiple part numbers: BC847CW, BC847.
Please refer to the document for exact specifications by model.
