BC847W, BC847 Datasheet - nexperia

BC847W, BC847, 100mA NPN general-purpose transistors

BC847xW series 45 V, 100 mA NPN general-purpose transistors Rev.13 * 1 July 2022 Product data sheet 1.General .
NPN general-purpose transistors in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

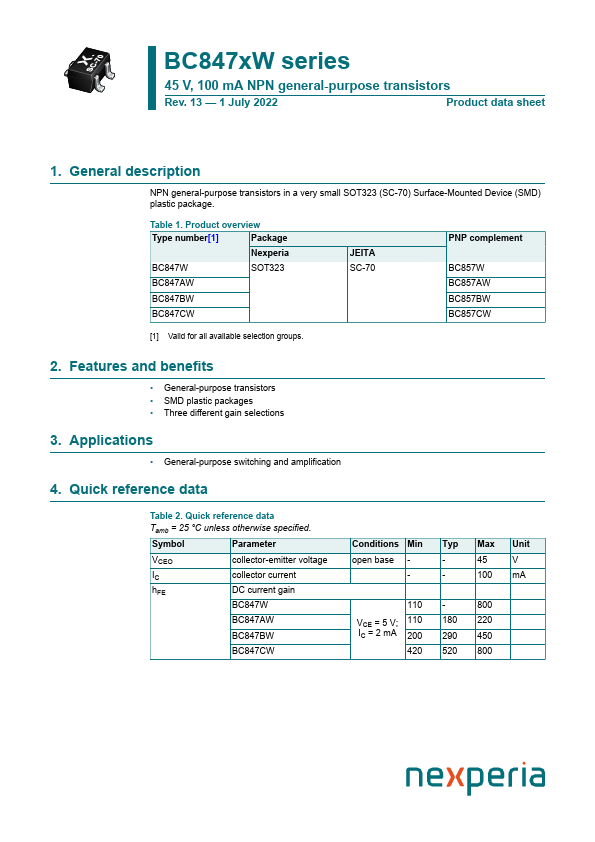

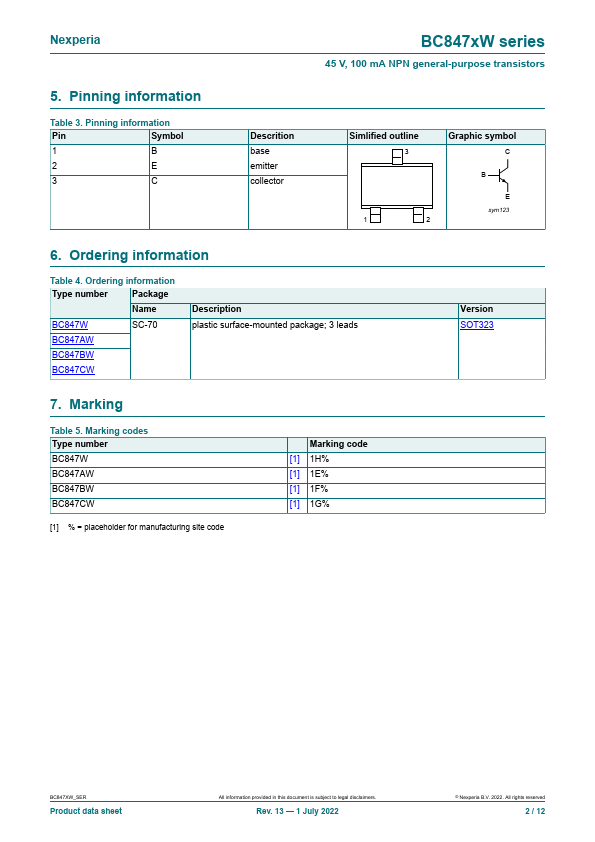

Datasheet Preview Page 1 BC847W Datasheet Preview Page 2 Datasheet Preview Page 3

Features

* General-purpose transistors
* SMD plastic packages

Applications

* General-purpose switching and amplification 4. Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain BC847W BC847AW BC847BW BC847CW Conditions Min T

BC847_PhilipsSemiconductors.pdf

This datasheet PDF includes multiple part numbers: BC847W, BC847. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BC847W, BC847

Manufacturer:

nexperia ↗

File Size:

228.64 KB

Description:

100mA NPN general-purpose transistors

Note:

This datasheet PDF includes multiple part numbers: BC847W, BC847.
Please refer to the document for exact specifications by model.
