BC849B-Q NPN general purpose transistor

BC849B-Q Description

BC849B-Q NPN general purpose transistor 5 September 2025 Product data sheet 1.General .
NPN transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package. Low current.

BC849B-Q Features

* Low current (max. 100 mA)
* Low voltage (max. 30 V)

BC849B-Q Applications

* 3. Applications
* General purpose switching and amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = 5 V; IC = 10 µA; Tj = 25 °C Min Typ Max Unit -

📥 Download Datasheet

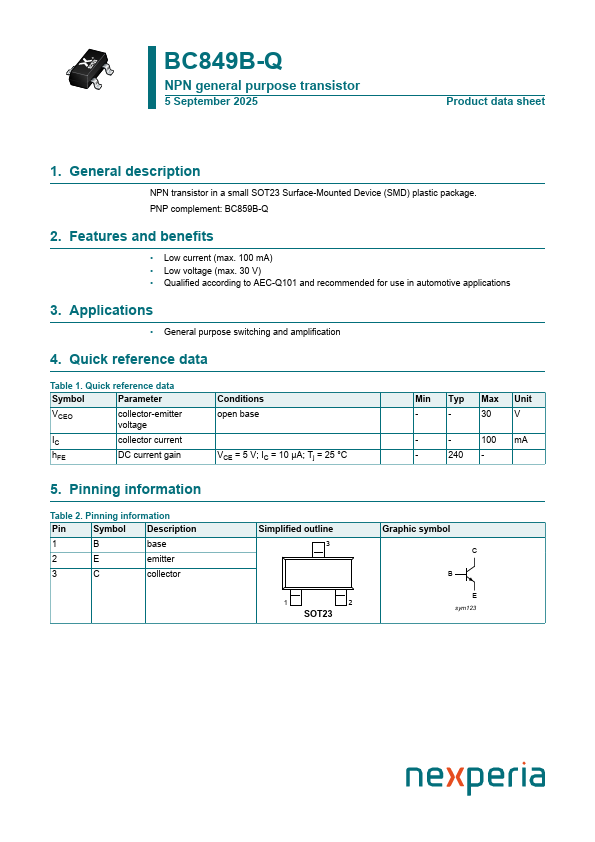

Preview of BC849B-Q PDF

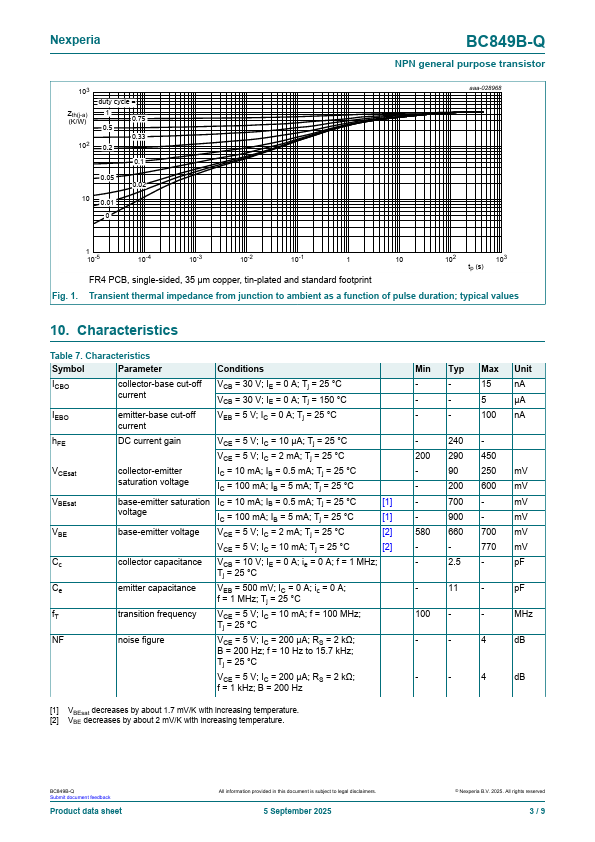

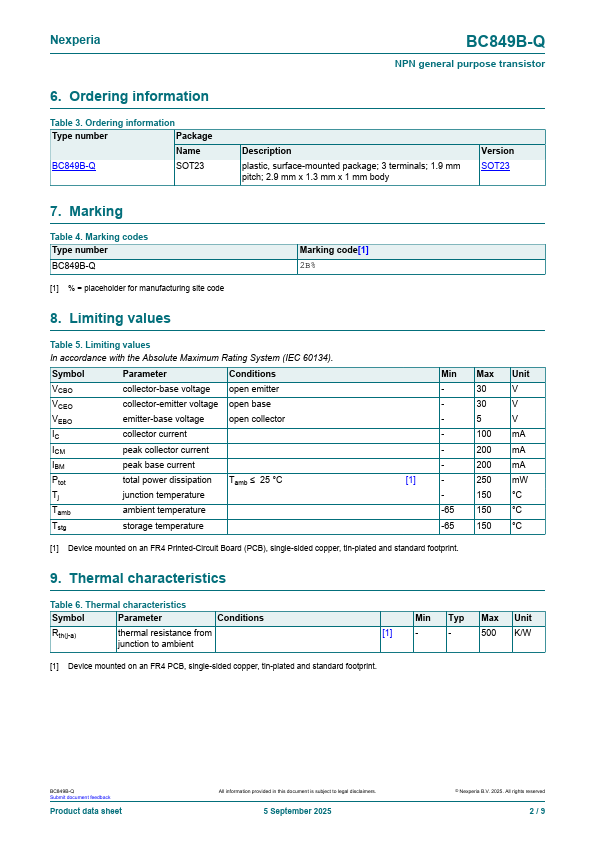

datasheet Preview Page 2 datasheet Preview Page 3
