BC849B

The BC849B is NPN Transistors designed by Kexin.

Product Overview

Kexin

Part number	BC849B, BC849
Manufacturer	Kexin
File Size	1.03 MB
Description	NPN Transistors
Datasheet	BC849-Kexin.pdf
Note	This datasheet PDF includes multiple part numbers: BC849B, BC849. Please refer to the document for exact specifications by model.

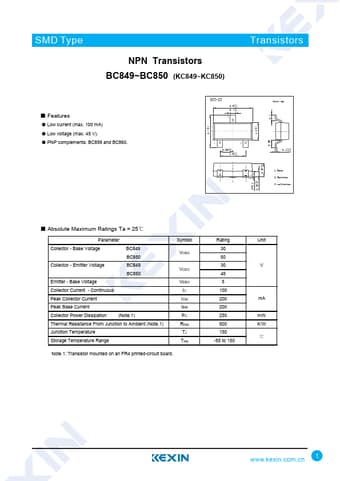

Additional preview pages of the BC849B datasheet.

s.
Low current (max. 100 mA).
Low voltage (max. 45 V).
PNP complements: BC859 and BC860. +0.12.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 12 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.10.97 -0.1 +0.11.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1.Base 2.Emitter 3.collector 0-0.1 +0.10.38 -0.1.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage BC849 BC850 Collector - Emitter Voltage BC849 BC850 Emitter - Base Voltage Collector Current - Continuous Pea.
