BC846AW

The BC846AW is NPN General Purpose Transistor designed by Kexin.

Product Overview

Kexin

Part number	BC846AW
Manufacturer	Kexin
File Size	45.87 KB
Description	NPN General Purpose Transistor
Datasheet	BC846AW-Kexin.pdf

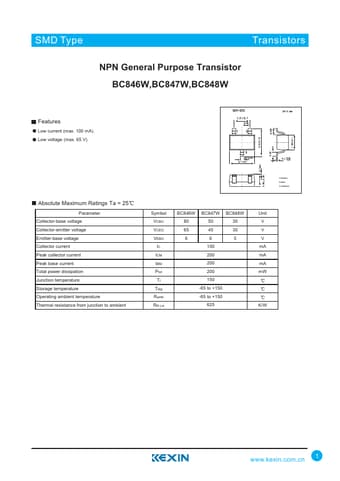

Additional preview pages of the BC846AW datasheet.

Low current (max. 100 mA). Low voltage (max. 65 V). Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Peak collector current Peak base current Total power dissipation Junction temperature Storage temperature Operating ambient temperature Thermal resistance from junction to ambient 1 Emitter 2 Base 3 Collector Symbol VCBO VCEO VEBO IC ICM IBM Ptot Tj Tstg Ramb Rth j-a BC846W BC847W BC848W 80 50 30 65 45 30 665 10.
