BUK7K3R7-40N - Dual N-channel 40V MOSFET

Name: BUK7K3R7-40N
SKU: BUK7K3R7-40N-1576669

nexperia

📥 Download Datasheet

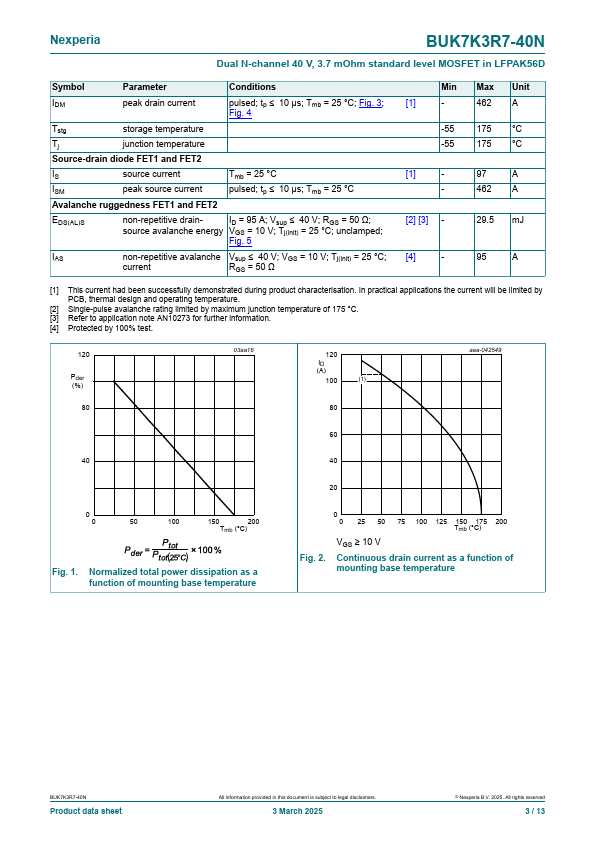

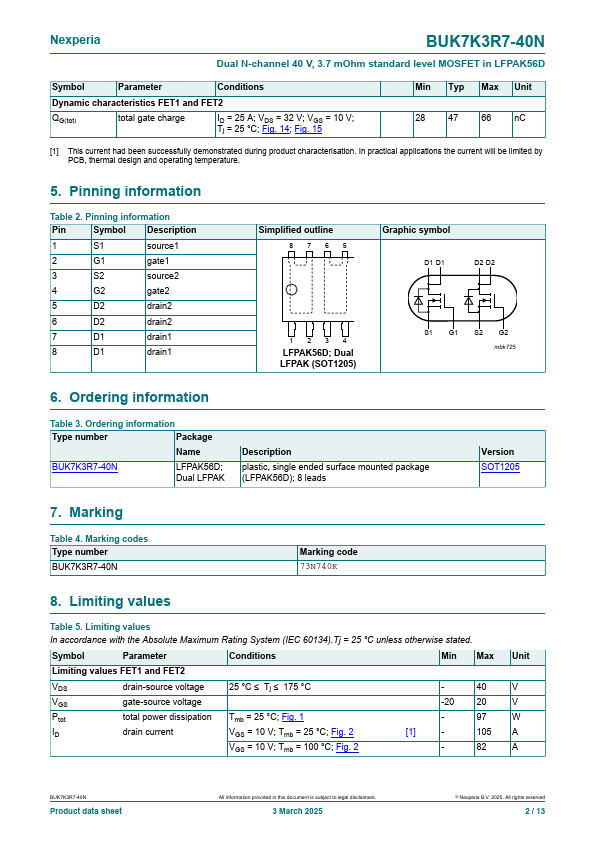

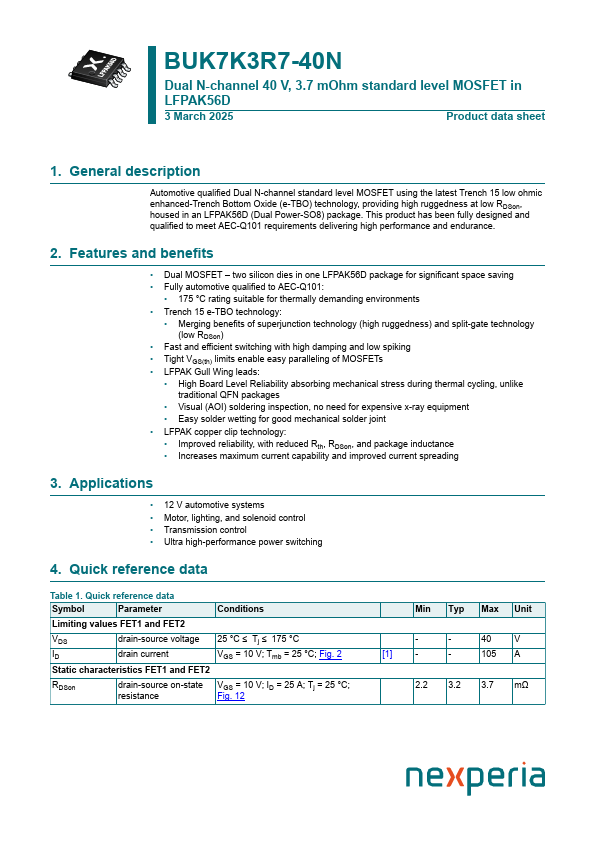

BUK7K3R7-40N Datasheet Preview — Preview of BUK7K3R7-40N PDF

Datasheet Details

Part number	BUK7K3R7-40N
Manufacturer	nexperia
File Size	309.41 KB
Description	Dual N-channel 40V MOSFET
Datasheet	BUK7K3R7-40N-nexperia.pdf

BUK7K3R7-40N Product details

Description

Automotive qualified Dual N-channel standard level MOSFET using the latest Trench 15 low ohmic enhanced-Trench Bottom Oxide (e-TBO) technology, providing high ruggedness at low RDSon, housed in an LFPAK56D (Dual Power-SO8) package.

Features

Dual MOSFET.
two silicon dies in one LFPAK56D package for significant space saving.
Fully automotive qualified to AEC-Q101:.
175 °C rating suitable for thermally demanding environments.
Trench 15 e-TBO technology:.
Merging benefits of superjunction technology (high ruggedness) and split-gate technology (low RDSon).
Fast and efficient switching with high damping and low spiking.
Tight VGS(th) limits enable easy paralleling o.
