BUK7Y2R0-40H - N-channel standard level MOSFET

nexperia

The BUK7Y2R0-40H by nexperia is a N-channel standard level MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	BUK7Y2R0-40H
Manufacturer	nexperia
File Size	295.56 KB
Description	N-channel standard level MOSFET
Datasheet	BUK7Y2R0-40H-nexperia.pdf

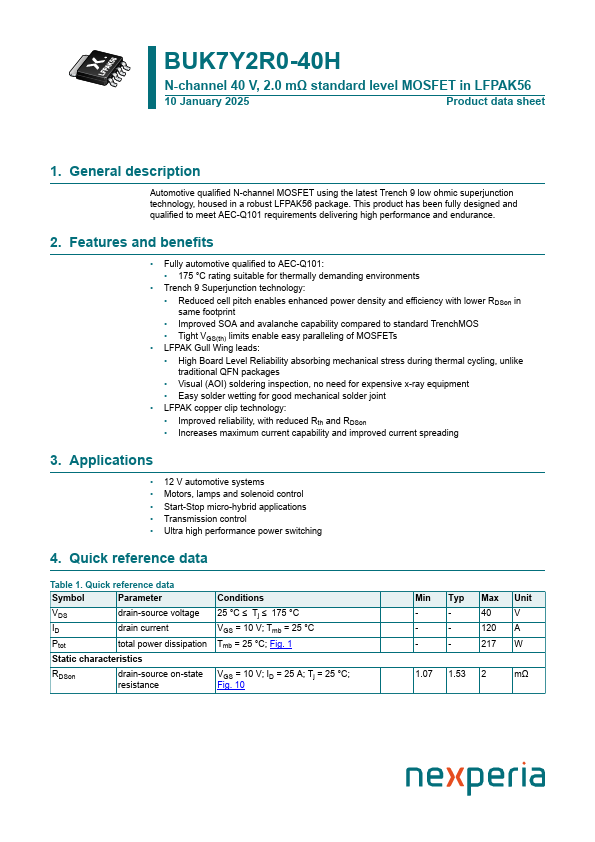

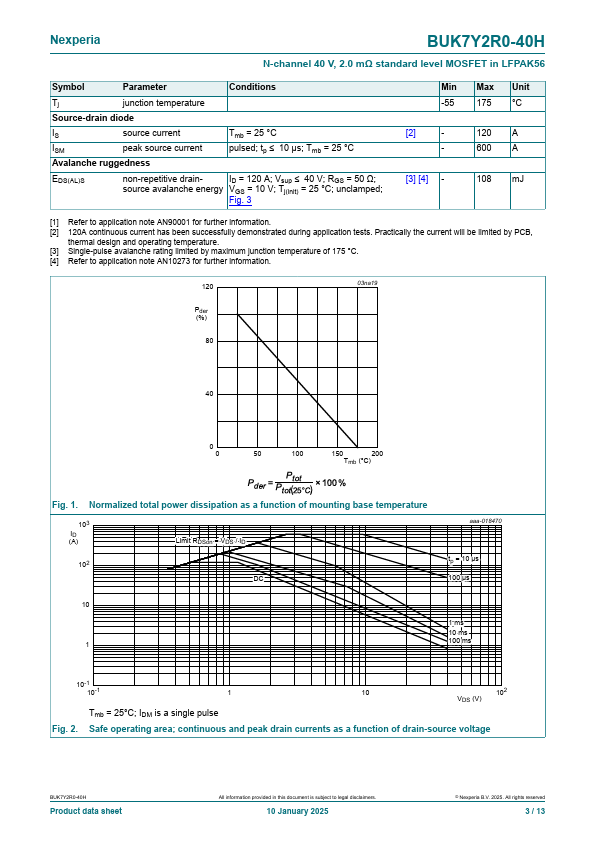

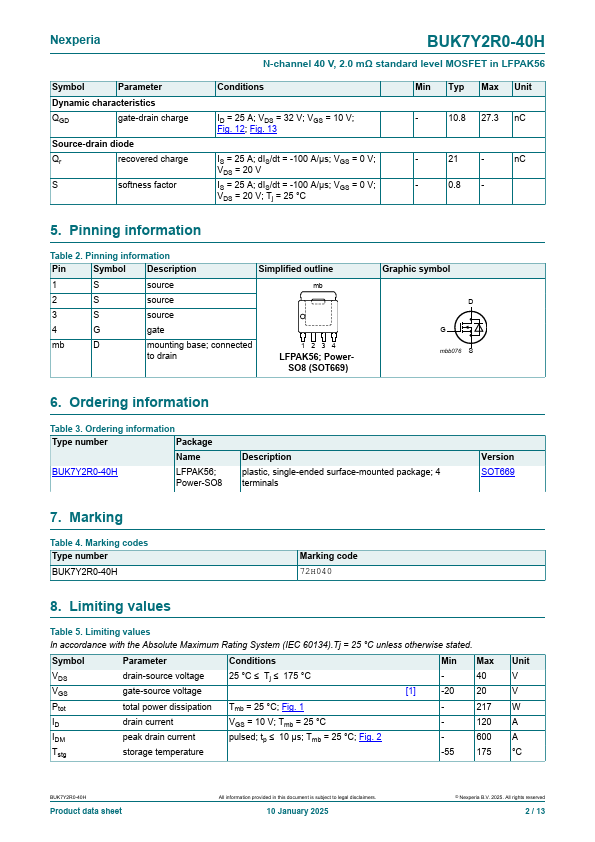

Additional preview pages of the BUK7Y2R0-40H datasheet.

Automotive qualified N-channel MOSFET using the latest Trench 9 low ohmic superjunction technology, housed in a robust LFPAK56 package.

Fully automotive qualified to AEC-Q101:.
175 °C rating suitable for thermally demanding environments.
Trench 9 Superjunction technology:.
Reduced cell pitch enables enhanced power density and efficiency with lower RDSon in same footprint.
Improved SOA and avalanche capability compared to standard TrenchMOS.
Tight VGS(th) limits enable easy paralleling of MOSFETs.
LFPAK Gull Wing leads:.
High Board Level Reliability absorbin.
