BZX84J - Voltage regulator diodes

nexperia

The BZX84J by nexperia is a Voltage regulator diodes. Below is the official datasheet preview.

📥 Download Datasheet

BZX84J Voltage regulator diodes by nexperia - Datasheet Preview — Official preview page of the BZX84J Voltage regulator diodes datasheet (nexperia).

Datasheet Details

Part number	BZX84J
Manufacturer	nexperia
File Size	305.04 KB
Description	Voltage regulator diodes
Datasheet	BZX84J-nexperia.pdf

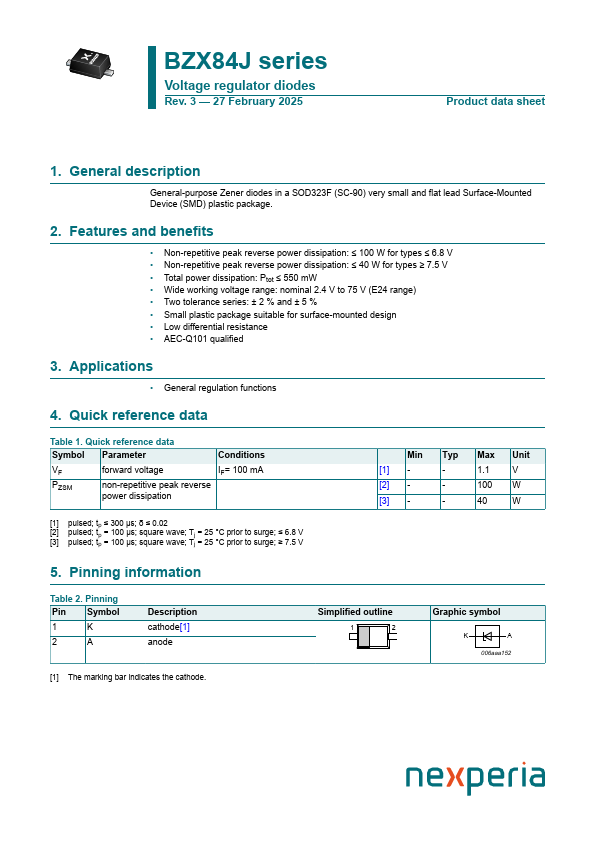

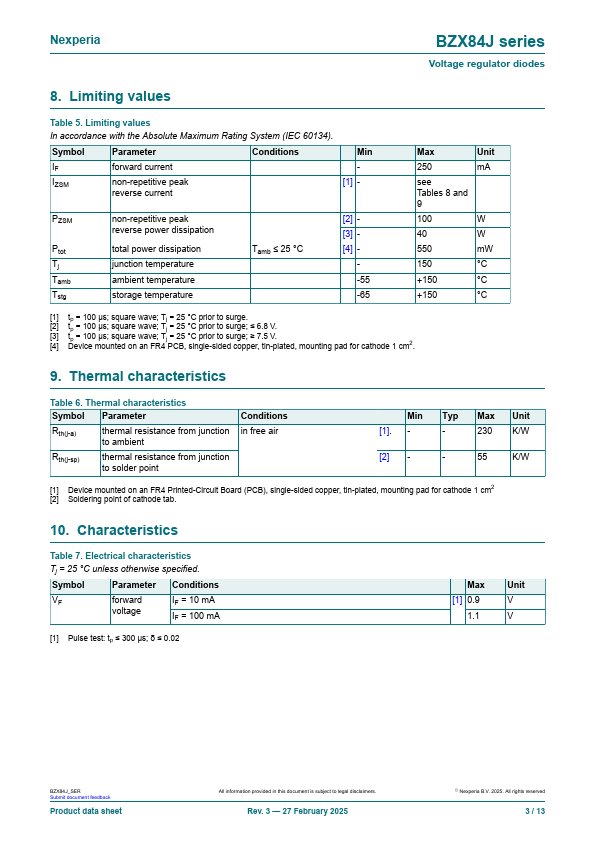

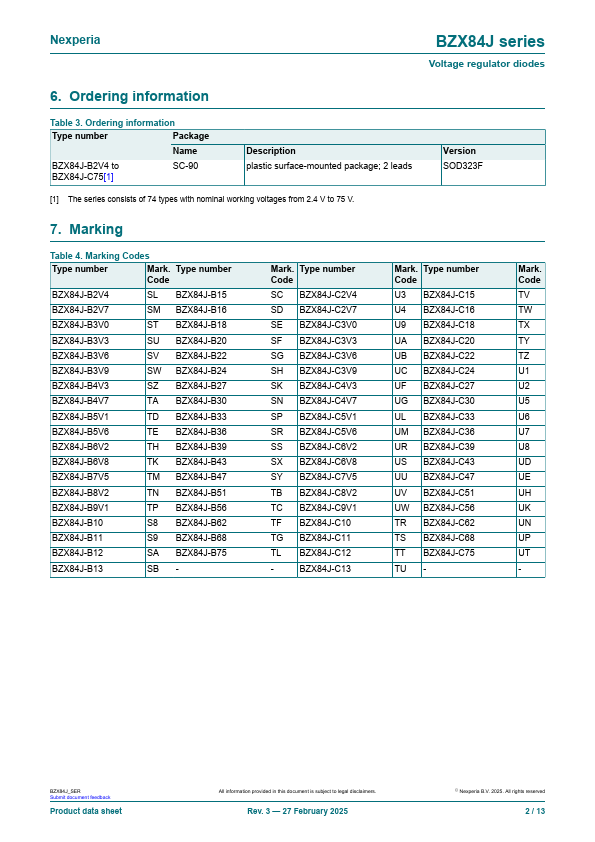

Additional preview pages of the BZX84J datasheet.

BZX84J Product details

Description

General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.

Features

Non-repetitive peak reverse power dissipation: ≤ 100 W for types ≤ 6.8 V.
Non-repetitive peak reverse power dissipation: ≤ 40 W for types ≥ 7.5 V.
Total power dissipation: Ptot ≤ 550 mW.
Wide working voltage range: nominal 2.4 V to 75 V (E24 range).
Two tolerance series: ± 2 % and ± 5 %.
Small plastic package suitable for surface-mounted design.
Low differential resistance.
AEC-Q101 qualified 3.
