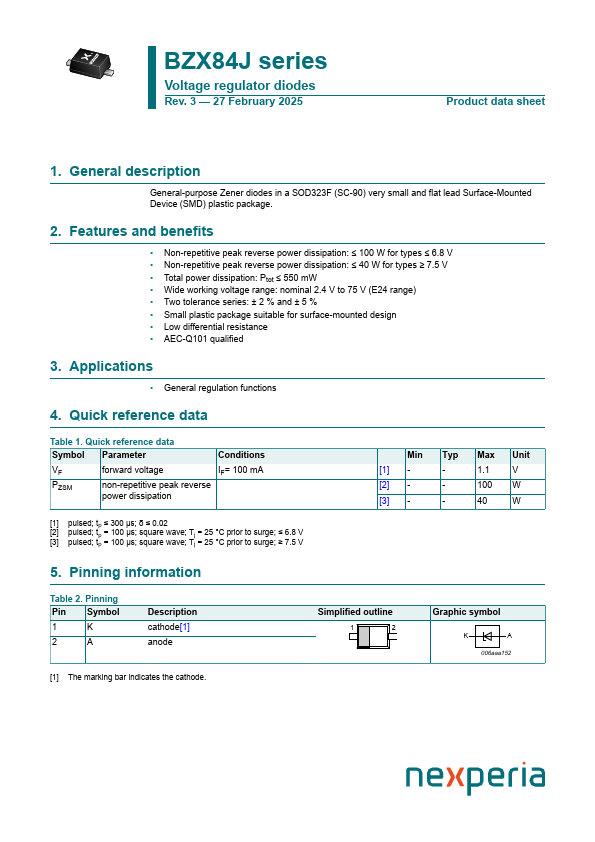

BZX84J series Voltage regulator diodes Rev.3 * 27 February 2025 Product data sheet 1.General .
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Features
* Non-repetitive peak reverse power dissipation: ≤ 100 W for types ≤ 6.8 V
* Non-repetitive peak reverse power dissipation: ≤ 40 W for types ≥ 7.5 V
* Total power dissipation: Ptot ≤ 550 mW
* Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
* Two
Applications
* General regulation functions
4. Quick reference data
Table 1. Quick reference data Symbol Parameter
Conditions
VF
forward voltage
IF= 100 mA
PZSM
non-repetitive peak reverse power dissipation
[1] pulsed; tp ≤ 300 μs; δ ≤ 0.02 [2] pulsed; tp = 100 μs; square wave; Tj = 25 °C prior
