BZX84J-B18 Datasheet, Diodes, nexperia

✔ BZX84J-B18 Features

Non-repetitive peak reverse power dissipation:  40 W
Total power dissipation:  550 mW
AEC-Q101 qualified
Small plastic package suitable for surface-mounted desi

✔ BZX84J-B18 Application

General regulation functions 1.4 Quick reference data Table 1. Symbol VF PZSM Quick reference data Para

PDF File Details

nexperia manufacturer logo and representative part image

Part number:

BZX84J-B18

Manufacturer:

nexperia ↗

File Size:

664.94kb

Download:

📄 Datasheet

Description:

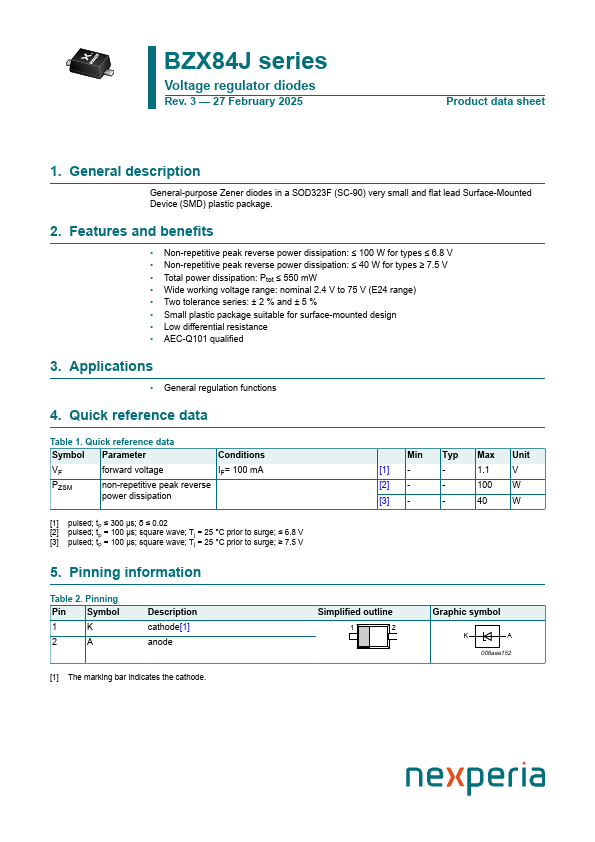

Single zener diodes. General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package. 1.2 Feature

📥 Download PDF (664.94kb)
