FR2M 1000V 2A fast recovery rectifier

FR2M Description

SMB FR2M 1000 V, 2 A fast recovery rectifier in SMB 20 January 2025 Product data sheet 1.General .
Fast recovery rectifier, encapsulated in an SMB package. Reverse voltage: VR ≤ 1000 V. Forward current: I.

FR2M Features

* Reverse voltage: VR ≤ 1000 V
* Forward current: IF ≤ 2 A
* Fast recovery time: trr ≤ 500 ns
* Pt doped life time control
* Ideal for automated placement
* Glass passivated chip junction

FR2M Applications

* Rectification
* Reverse polarity protection
* Freewheeling applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions IF(AV) average forward current δ = 0.5; f = 20 kHz; square wave; Tsp ≤ 137 °C VRRM repetitive peak reverse Tj

📥 Download Datasheet

Preview of FR2M PDF

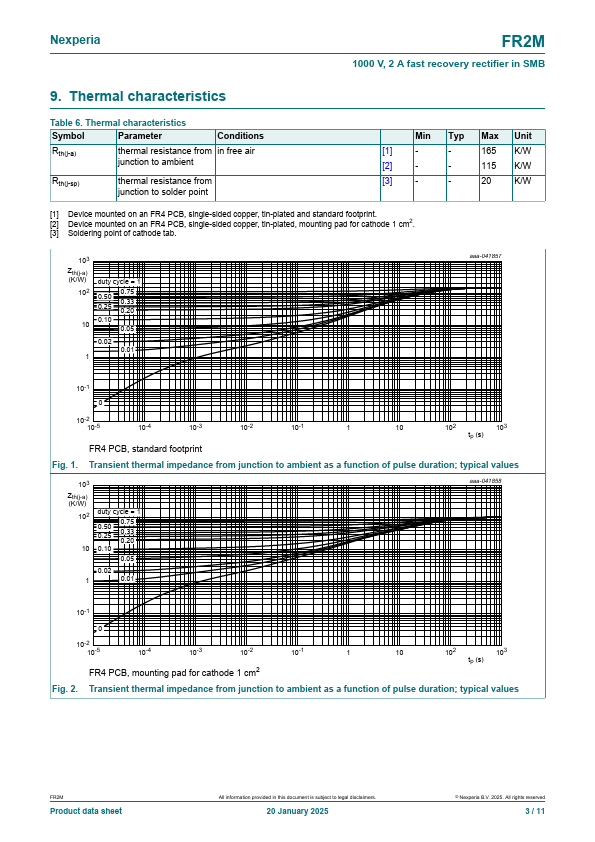

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FR2M
Manufacturer
nexperia ↗
File Size
268.80 KB
Datasheet
FR2M-nexperia.pdf
Description
1000V 2A fast recovery rectifier
