NCA9548A 8-channel I2C-bus switch

nexperia

NCA9548A Description

NCA9548A 8-channel I²C-bus switch with reset Rev.1 * 20 August 2025 Product data sheet 1.General .
The NCA9548A is an octal bidirectional translating switch controlled via the I²C-bus.

NCA9548A Features

* 1-of-8 bidirectional translating switches
* I²C-bus interface logic; compatible with SMBus standards
* Active LOW reset input
* Three address pins allowing up to eight devices on the I²C-bus
* Channel selection via I²C-bus, in any combination
* Power

📥 Download Datasheet

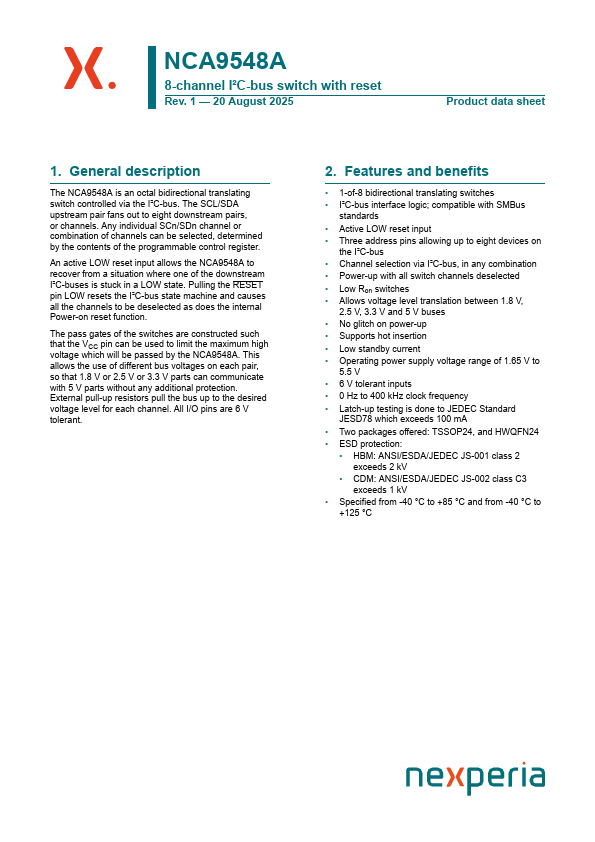

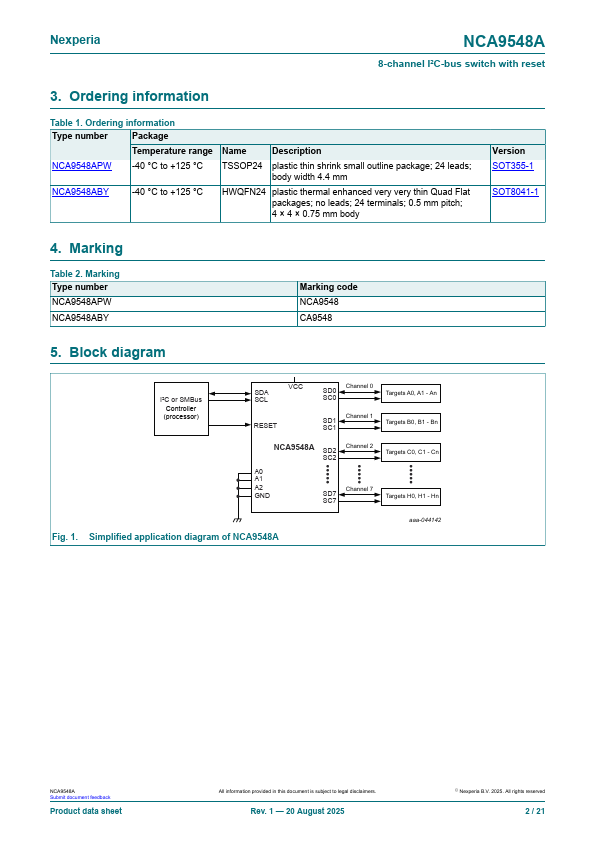

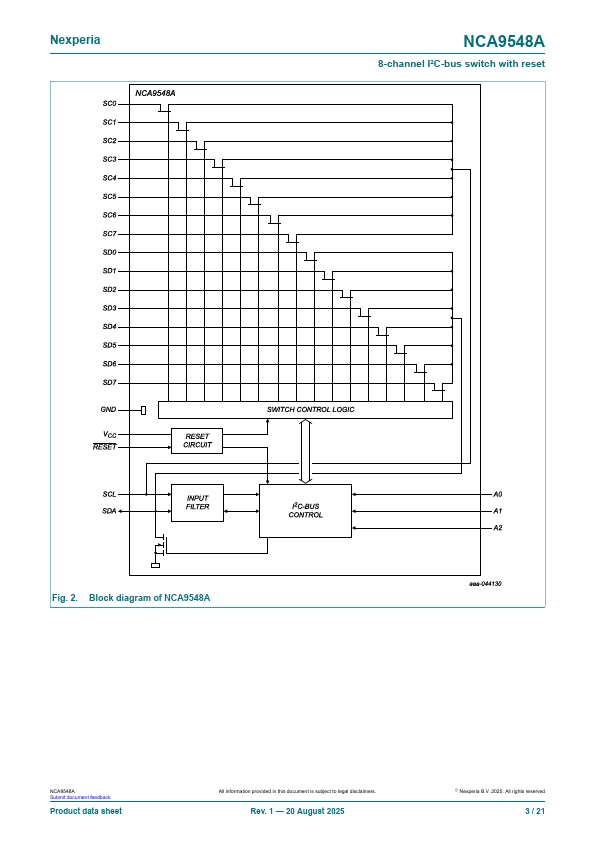

NCA9548A Datasheet Preview — Preview of NCA9548A PDF

Datasheet Details

Part number: NCA9548A
Manufacturer: nexperia ↗
File Size: 745.12 KB
Datasheet: NCA9548A-nexperia.pdf
Description: 8-channel I2C-bus switch
