NEX92X30-Q100 300mA dual-channel antenna LDO

nexperia

NEX92X30-Q100 Description

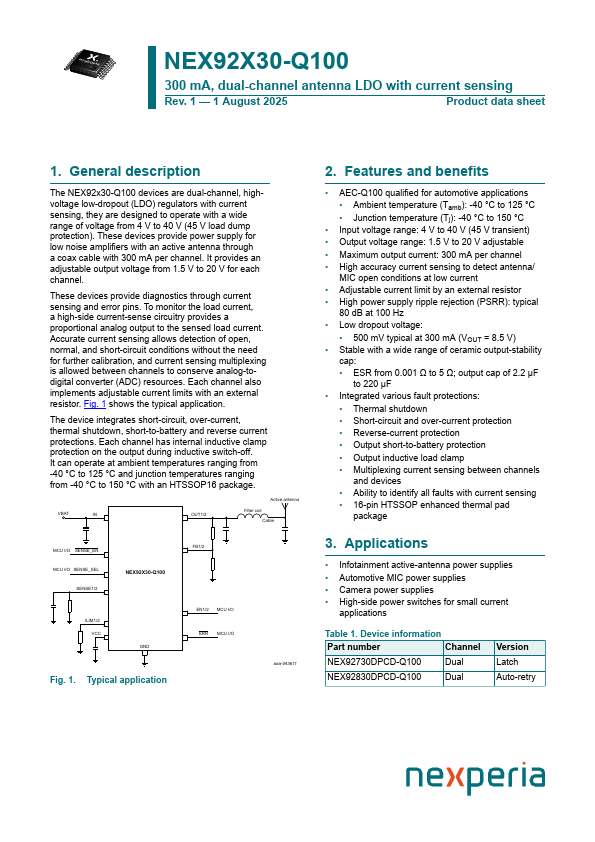

HTSSOP16 NEX92X30-Q100 300 mA, dual-channel antenna LDO with current sensing Rev.1 * 1 August 2025 Product data sheet 1.General descrip.
The NEX92x30-Q100 devices are dual-channel, highvoltage low-dropout (LDO) regulators with current sensing, they are designed to operate with a wide r.

NEX92X30-Q100 Applications

* Ambient temperature (Tamb): -40 °C to 125 °C
* Junction temperature (Tj): -40 °C to 150 °C
* Input voltage range: 4 V to 40 V (45 V transient)
* Output voltage range: 1.5 V to 20 V adjustable
* Maximum output current: 300 mA per channel
* High accura

📥 Download Datasheet

NEX92X30-Q100 Datasheet Preview — Preview of NEX92X30-Q100 PDF

Datasheet Details

Part number: NEX92X30-Q100
Manufacturer: nexperia ↗
File Size: 1.00 MB
Datasheet: NEX92X30-Q100-nexperia.pdf
Description: 300mA dual-channel antenna LDO
