NSF030120D7A0-Q - 1200V N-channel SiC MOSFET

nexperia

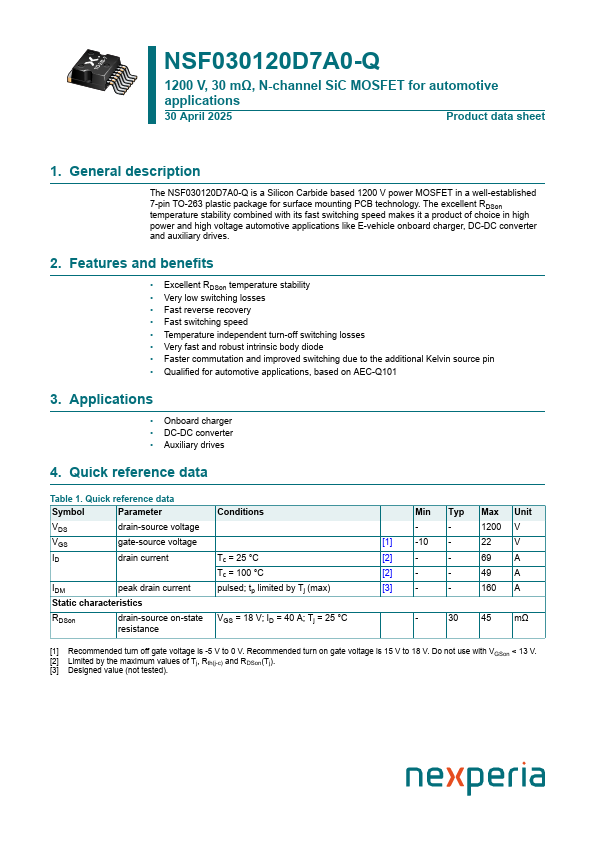

NSF030120D7A0-Q Datasheet Preview — Preview of NSF030120D7A0-Q PDF

Datasheet Details

Part number	NSF030120D7A0-Q
Manufacturer	nexperia ↗
File Size	1.33 MB
Description	1200V N-channel SiC MOSFET
Datasheet	NSF030120D7A0-Q-nexperia.pdf

NSF030120D7A0-Q Product details

Description

The NSF030120D7A0-Q is a Silicon Carbide based 1200 V power MOSFET in a well-established 7-pin TO-263 plastic package for surface mounting PCB technology.

Features

Excellent RDSon temperature stability.
Very low switching losses.
Fast reverse recovery.
Fast switching speed.
Temperature independent turn-off switching losses.
Very fast and robust intrinsic body diode.
Faster commutation and improved switching due to the additional Kelvin source pin.
Qualified for automotive.
