NXF6505B-Q100, NXF6505A-Q100 Low-noise 1.2A transformer driver

NXF6505B-Q100 Description

TSOT23-6 NXF6505A-Q100; NXF6505B-Q100 Low-noise, 1.2 A transformer driver for isolated power supplies Rev.2 * 22 August 2025 Product da.
2.

NXF6505B-Q100 Features

* The NXF6505A/B-Q100 is a specialized push-pull transformer driver that is designed for isolated power supplies in small form factors. This driver is capable of driving low-profile, center-tapped transformers from a 2.25 V to 5.5 V DC power supply, while achieving ultra-low noise and EMI using slew

NXF6505B-Q100 Applications

* that require higher efficiency and smaller transformers. The NXF6505A/B-Q100 is available in a small 6 pin SOT8061-1 package and is characterized for operation within a temperature range of -55 °C to 125 °C. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (G

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NXF6505B-Q100, NXF6505A-Q100. Please refer to the document for exact specifications by model.

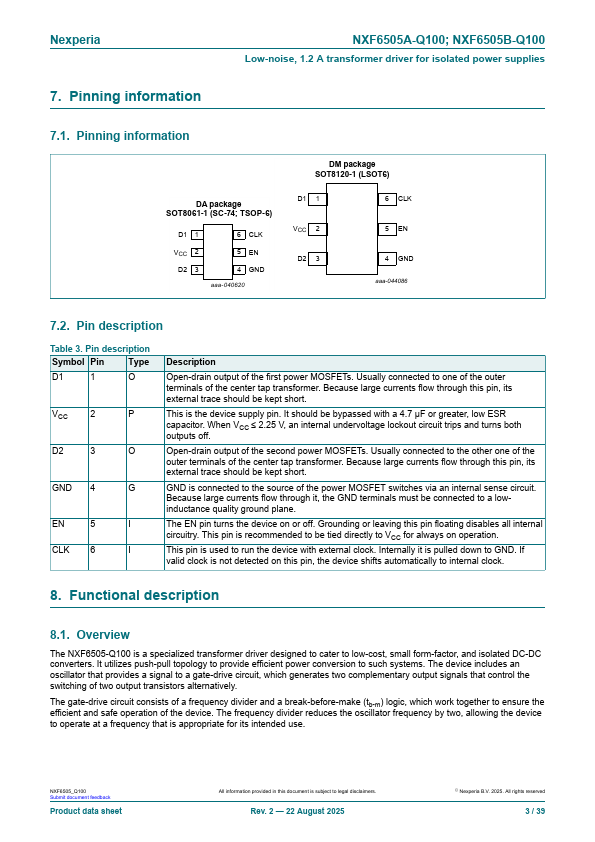

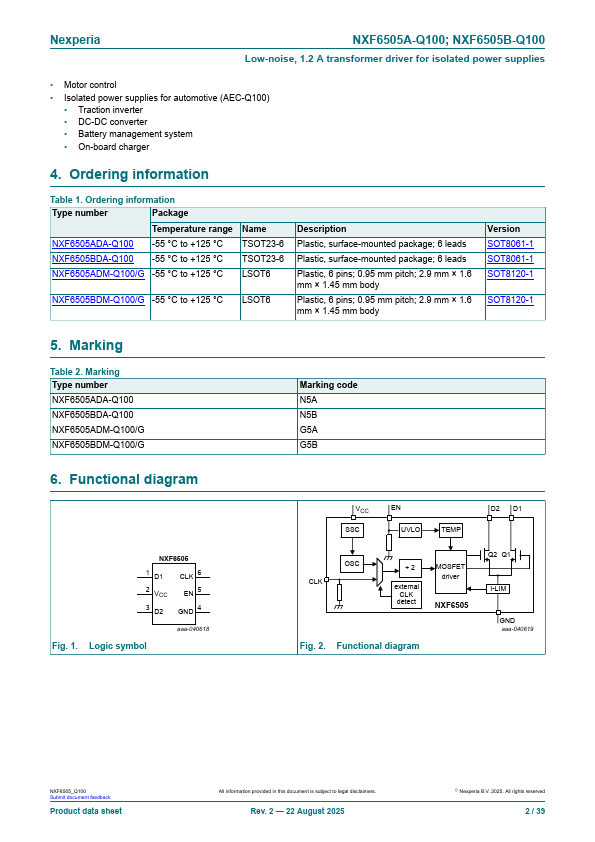

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NXF6505B-Q100, NXF6505A-Q100
Manufacturer
nexperia ↗
File Size
1.30 MB
Datasheet
NXF6505A-Q100-nexperia.pdf
Description
Low-noise 1.2A transformer driver
Note
This datasheet PDF includes multiple part numbers: NXF6505B-Q100, NXF6505A-Q100.
Please refer to the document for exact specifications by model.
