PDTA144EU-Q - 50V 100mA PNP resistor-equipped transistor

nexperia

The PDTA144EU-Q by nexperia is a 50V 100mA PNP resistor-equipped transistor. Below is the official datasheet preview.

📥 Download Datasheet

PDTA144EU-Q 50V 100mA PNP resistor-equipped transistor by nexperia - Datasheet Preview — Official preview page of the PDTA144EU-Q 50V 100mA PNP resistor-equipped transistor datasheet (nexperia).

Datasheet Details

Part number	PDTA144EU-Q
Manufacturer	nexperia
File Size	213.15 KB
Description	50V 100mA PNP resistor-equipped transistor
Datasheet	PDTA144EU-Q-nexperia.pdf

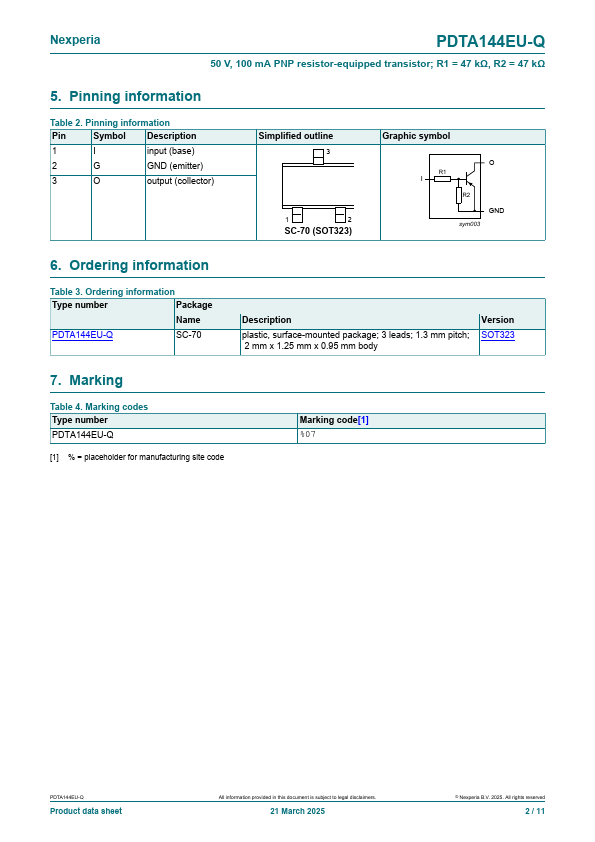

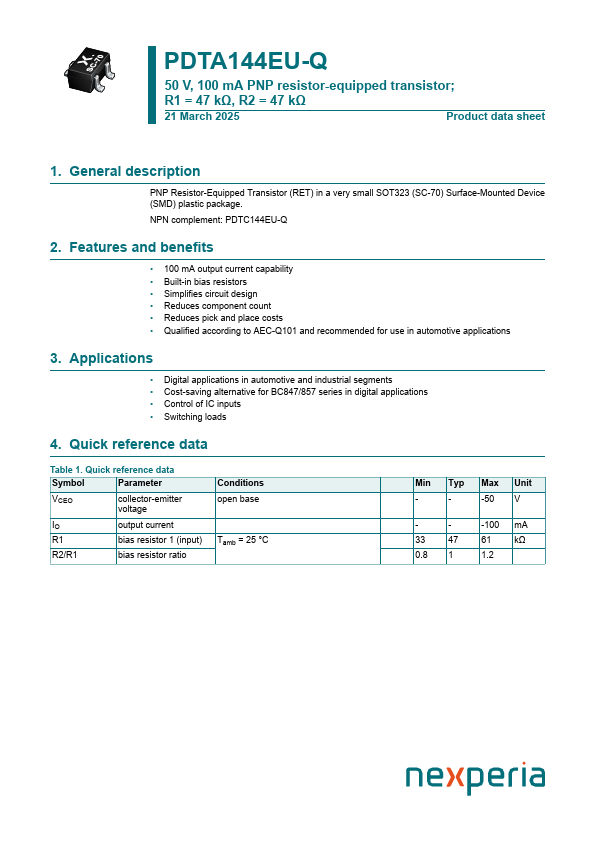

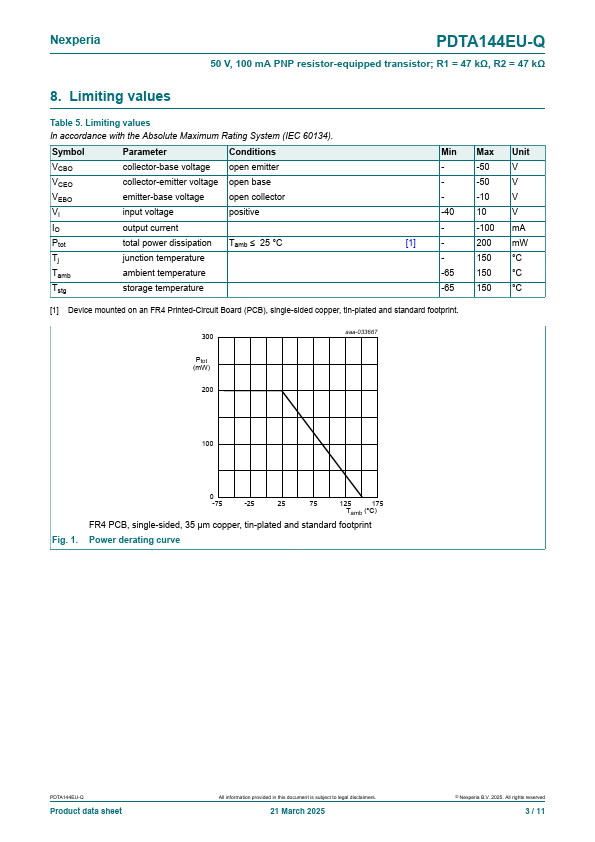

Additional preview pages of the PDTA144EU-Q datasheet.

PDTA144EU-Q Product details

Description

PNP Resistor-Equipped Transistor (RET) in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

Features

100 mA output current capability.
Built-in bias resistors.
Simplifies circuit design.
Reduces component count.
Reduces pick and place costs.
Qualified according to AEC-Q101 and recommended for use in automotive.
