PDTC143ZM-Q - 50V 100mA NPN resistor-equipped transistor

Datasheet Summary

Description

NPN Resistor-Equipped Transistor (RET) in a leadless ultra small SOT883 (SC-101) SurfaceMounted Device (SMD) plastic package.

2.

Features

  • 100 mA output current capability.
  • Built-in bias resistors.
  • Simplifies circuit design.
  • Reduces component count.
  • Reduces pick and place costs.
  • Qualified according to AEC-Q101 and recommended for use in automotive.

📥 Download Datasheet

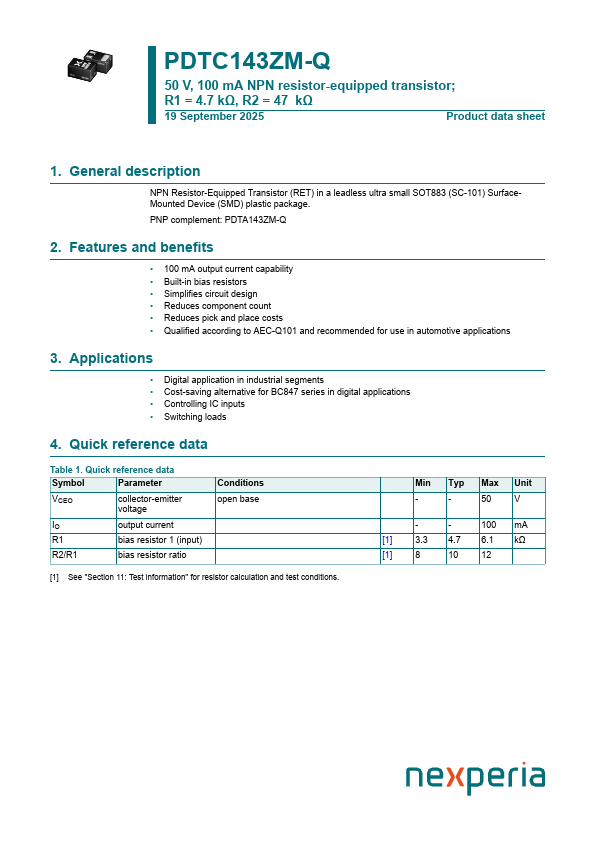

Datasheet preview – PDTC143ZM-Q

Datasheet Details

Part number PDTC143ZM-Q
Manufacturer nexperia
File Size 224.74 KB
Description 50V 100mA NPN resistor-equipped transistor
Datasheet download datasheet PDTC143ZM-Q Datasheet

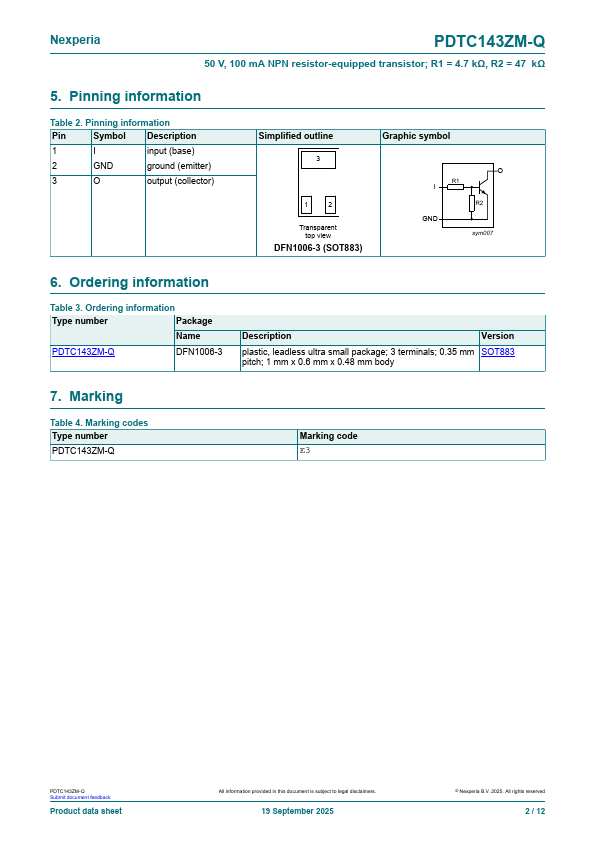

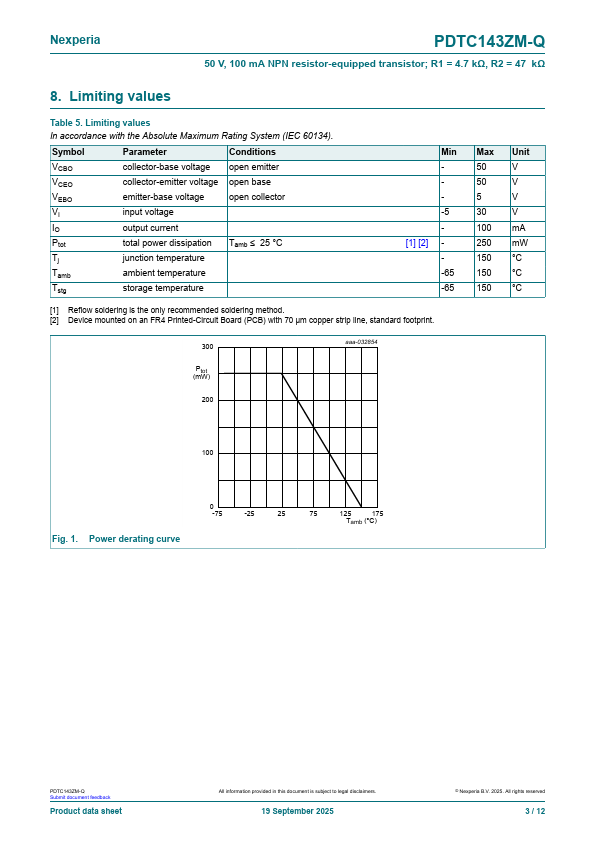

Additional preview pages of the PDTC143ZM-Q datasheet.

📁 Similar Datasheet

  • PDTC143ZM - NPN resistor-equipped transistors; R1 = 4.7 kW/ R2 = 47 kW (NXP)
  • PDTC143ZMB - NPN resistor-equipped transistor (NXP)
  • PDTC143Z - NPN resistor-equipped transistors (NXP)
  • PDTC143ZE - NPN resistor-equipped transistors (NXP)
  • PDTC143ZEF - NPN resistor-equipped transistors; R1 = 4.7 kW/ R2 = 47 kW (NXP)
  • PDTC143ZK - NPN resistor-equipped transistor (NXP)
  • PDTC143ZS - NPN resistor-equipped transistors; R1 = 4.7 kW/ R2 = 47 kW (NXP)
  • PDTC143ZT - NPN resistor-equipped transistors; R1 = 4.7 kW/ R2 = 47 kW (NXP)
  • PDTC143ZU - NPN resistor-equipped transistors; R1 = 4.7 kW/ R2 = 47 kW (NXP)
  • PDTC143E - NPN resistor-equipped transistor (NXP)
Other Datasheets by nexperia
  • PDTC143ZM - NPN resistor-equipped transistors
  • PDTC143Z - NPN resistor-equipped transistors
  • PDTC143ZE - NPN resistor-equipped transistors
  • PDTC143ZT - NPN resistor-equipped transistors
  • PDTC143ZU - NPN resistor-equipped transistors
  • PDTC143EMB - NPN resistor-equipped transistor
  • PDTC143EQA - NPN resistor-equipped transistor
  • PDTC143X - NPN resistor-equipped transistor

Full PDF Text Transcription

Click to expand full text
PDTC143ZM-Q 50 V, 100 mA NPN resistor-equipped transistor; R1 = 4.7 kΩ, R2 = 47 kΩ 19 September 2025 Product data sheet 1. General description NPN Resistor-Equipped Transistor (RET) in a leadless ultra small SOT883 (SC-101) SurfaceMounted Device (SMD) plastic package. PNP complement: PDTA143ZM-Q 2. Features and benefits • 100 mA output current capability • Built-in bias resistors • Simplifies circuit design • Reduces component count • Reduces pick and place costs • Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications • Digital application in industrial segments • Cost-saving alternative for BC847 series in digital applications • Controlling IC inputs • Switching loads 4. Quick reference data Table 1.
