PESD5V0H1BLG-Q - Extremely low clamping bidirectional ESD protection diode

Datasheet Summary

Description

Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS Protection family.

This device is housed in a small leadless DFN1006LD-2 (SOD882LD) Surface-Mounted Device (SMD) laminate package with side-wettable flanks.

Features

  • Bidirectional ESD protection of one line.
  • Ultra low capacitance: Cd < 0.25 pF.
  • ESD protection starting from 15 kV (IEC 61000-4-2).
  • Deep snap-back combined with dynamic resistance of 0.35 Ω.
  • DFN1006LD-2 package with side-wettable flanks, performance optimized for high-speed networks.
  • Qualified according to AEC-Q101 / Automotive grade 3.

📥 Download Datasheet

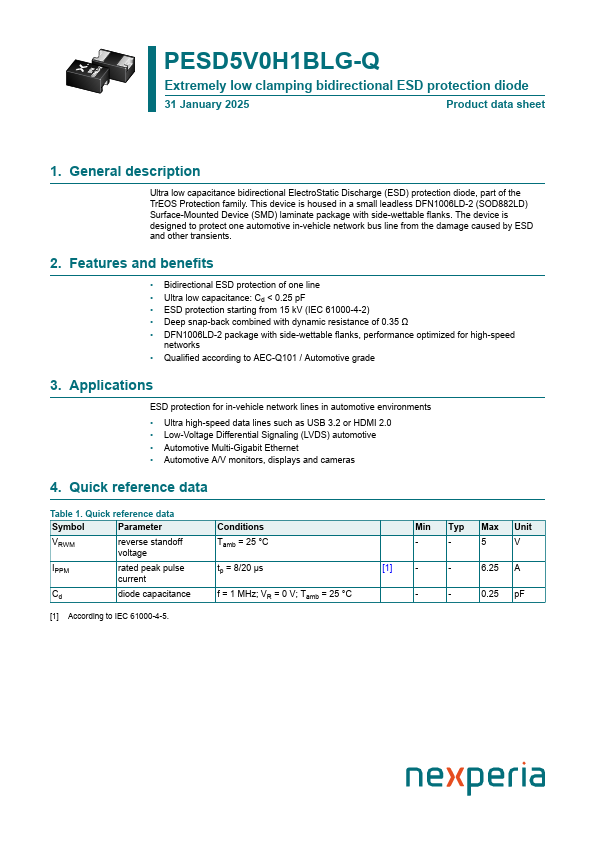

Datasheet preview – PESD5V0H1BLG-Q

Datasheet Details

Part number PESD5V0H1BLG-Q
Manufacturer nexperia
File Size 215.92 KB
Description Extremely low clamping bidirectional ESD protection diode
Datasheet download datasheet PESD5V0H1BLG-Q Datasheet

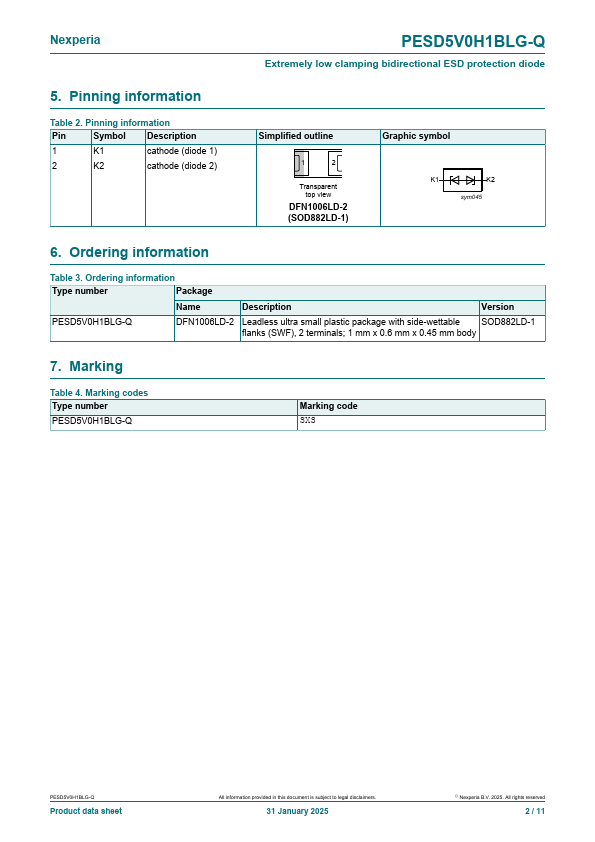

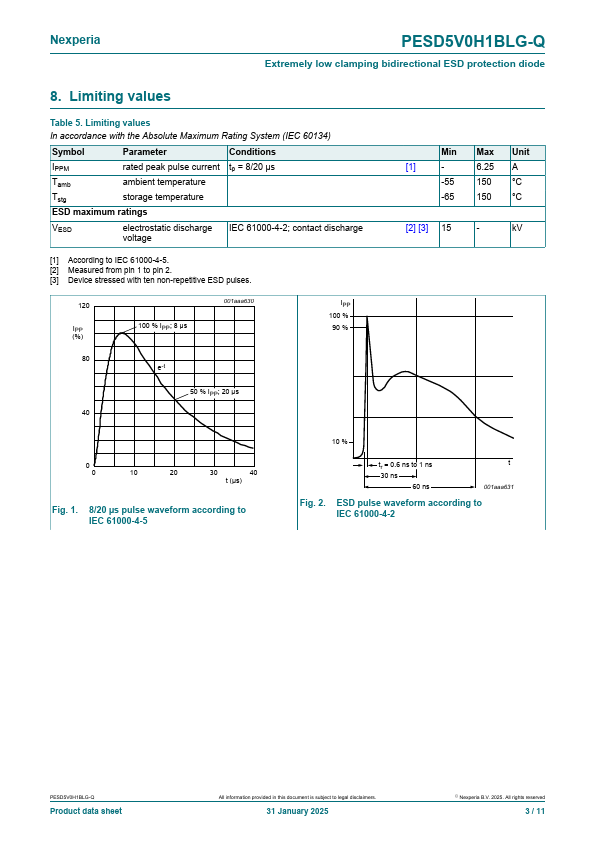

Additional preview pages of the PESD5V0H1BLG-Q datasheet.

📁 Similar Datasheet

  • PESD5V0H1BSF - Ultra low capacitance bidirectional ESD protection diode (NXP)
  • PESD5V0C1BSF - Ultra low capacitance bidirectional ESD protection diode (NXP)
  • PESD5V0C1USF - Ultra Low Capacitance Bi-directional TVS Diode (Leiditech)
  • PESD5V0C1USF - Ultra low capacitance unidirectional ESD protection diode (NXP)
  • PESD5V0F1BL - TVS DIODE (Leiditech)
  • PESD5V0F1BL - Femtofarad bidirectional ESD protection diode (NXP Semiconductors)
  • PESD5V0F1BLD - Femtofarad bidirectional ESD protection diode (NXP)
  • PESD5V0F1BRLD - Femtofarad bidirectional ESD protection diode (NXP)
  • PESD5V0F1BRSF - Ultra Low Capacitance Bi-directional TVS Diode (Leiditech)
  • PESD5V0F1BRSF - Extremely low capacitance bidirectional ESD protection diode (NXP)
Other Datasheets by nexperia
  • PESD5V0H1BLL-Q - Extremely low clamping bidirectional ESD protection diode
  • PESD5V0H1BSF - Ultra low capacitance bidirectional ESD protection diode
  • PESD5V0H2BFG-Q - Extremely low clamping bidirectional ESD protection diode
  • PESD5V0C1BSF - Ultra low capacitance bidirectional ESD protection diode
  • PESD5V0C1USF - Ultra low capacitance unidirectional ESD protection diode
  • PESD5V0C2UM - Extremely low capacitance unidirectional ESD protection diode array
  • PESD5V0F1BL - Femtofarad bidirectional ESD protection diode
  • PESD5V0F1BRLD - Femtofarad bidirectional ESD protection diode

Full PDF Text Transcription

Click to expand full text
PESD5V0H1BLG-Q Extremely low clamping bidirectional ESD protection diode 31 January 2025 Product data sheet 1. General description Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS Protection family. This device is housed in a small leadless DFN1006LD-2 (SOD882LD) Surface-Mounted Device (SMD) laminate package with side-wettable flanks. The device is designed to protect one automotive in-vehicle network bus line from the damage caused by ESD and other transients. 2. Features and benefits • Bidirectional ESD protection of one line • Ultra low capacitance: Cd < 0.25 pF • ESD protection starting from 15 kV (IEC 61000-4-2) • Deep snap-back combined with dynamic resistance of 0.
