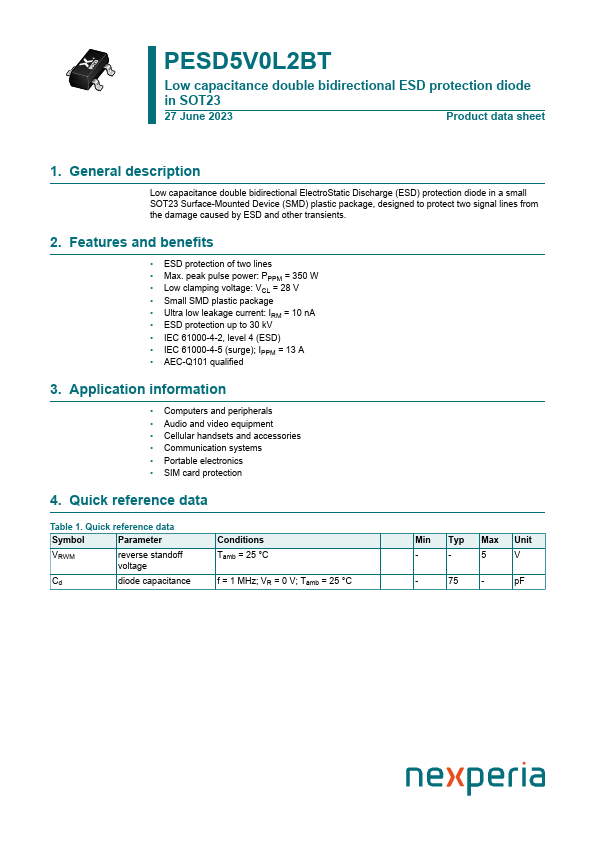

PESD5V0L2BT
description
Low capacitance double bidirectional Electro Static Discharge (ESD) protection diode in a small SOT23 Surface-Mounted Device (SMD) plastic package, designed to protect two signal lines from the damage caused by ESD and other transients.
2. Features and benefits
- ESD protection of two lines
- Max. peak pulse power: PPPM = 350 W
- Low clamping voltage: VCL = 28 V
- Small SMD plastic package
- Ultra low leakage current: IRM = 10 n A
- ESD protection up to 30 k V
- IEC 61000-4-2, level 4 (ESD)
- IEC 61000-4-5 (surge); IPPM = 13 A
- AEC-Q101 qualified
3. Application information
- puters and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- munication systems
- Portable electronics
- SIM card protection
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VRWM reverse standoff voltage
Cd diode capacitance
Conditions Tamb = 25 °C f = 1 MHz; VR = 0 V; Tamb = 25 °C
Min Typ Max Unit
- -
- 75
- p F
