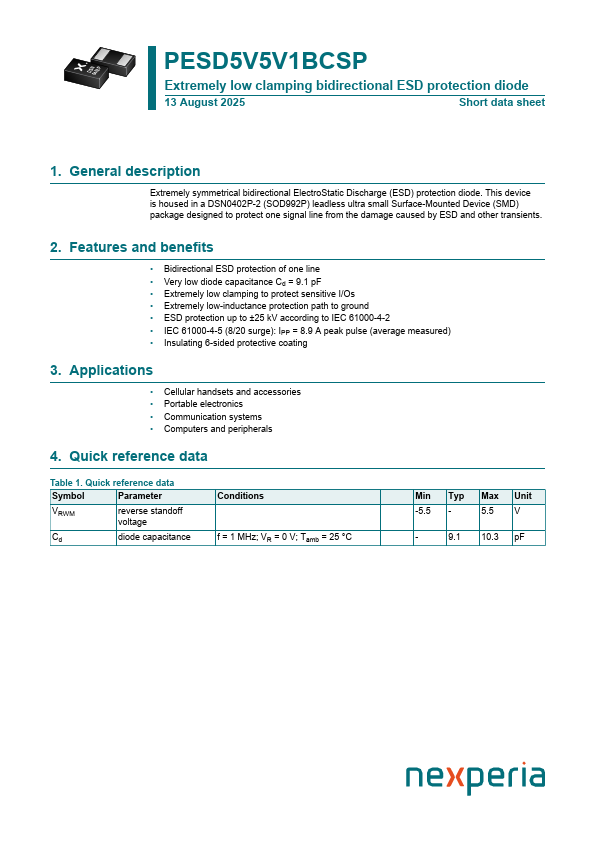

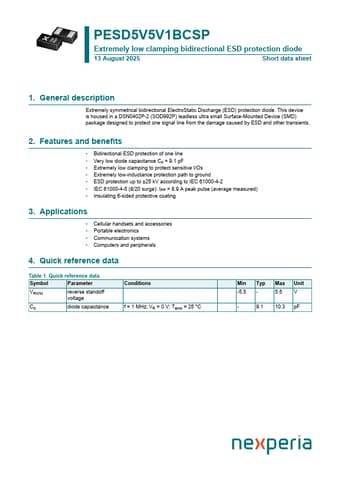

PESD5V5V1BCSP
description
Extremely symmetrical bidirectional Electro Static Discharge (ESD) protection diode. This device is housed in a DSN0402P-2 (SOD992P) leadless ultra small Surface-Mounted Device (SMD) package designed to protect one signal line from the damage caused by ESD and other transients.
2. Features and benefits
- Bidirectional ESD protection of one line
- Very low diode capacitance Cd = 9.1 p F
- Extremely low clamping to protect sensitive I/Os
- Extremely low-inductance protection path to ground
- ESD protection up to ±25 k V according to IEC 61000-4-2
- IEC 61000-4-5 (8/20 surge): IPP = 8.9 A peak pulse (average measured)
- Insulating 6-sided protective coating
3. Applications
- Cellular handsets and accessories
- Portable electronics
- munication systems
- puters and peripherals
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VRWM reverse standoff voltage
Cd diode capacitance
Conditions f = 1 MHz; VR = 0 V; Tamb = 25 °C
Min Typ Max Unit
-5.5
-...
