PMEG3005EGW - 0.5A low VF MEGA Schottky barrier rectifier

PMEG3005EGW Description

PMEG3005EGW 30 V, 0.5 A low VF MEGA Schottky barrier rectifier 7 December 2016 Product data sheet 1.General .
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection encapsulated in sm.

PMEG3005EGW Features

* Forward current: IF ≤ 0.5 A
* Reverse voltage: VR ≤ 30 V
* Low forward voltage typ. VF = 380 mV
* Low reverse current typ. IR = 40 µA
* Small SMD plastic package

PMEG3005EGW Applications

* Low voltage rectification
* High efficiency DC-to-DC conversion
* Switch mode power supply
* Reverse polarity protection
* Low power consumption applications
* Automotive applications 4. Quick reference data Table 1. Quick reference data Symbol P

📥 Download Datasheet

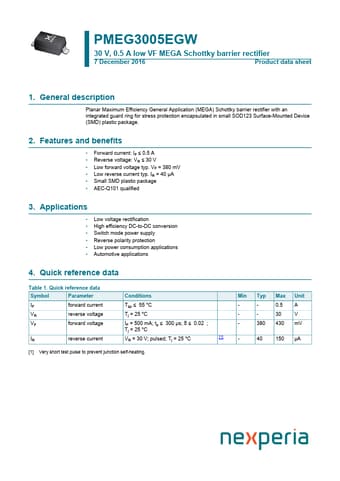

Preview of PMEG3005EGW PDF
datasheet Preview Page 2 datasheet Preview Page 3
