PMEG6010EXD 60V 1A Schottky barrier rectifier

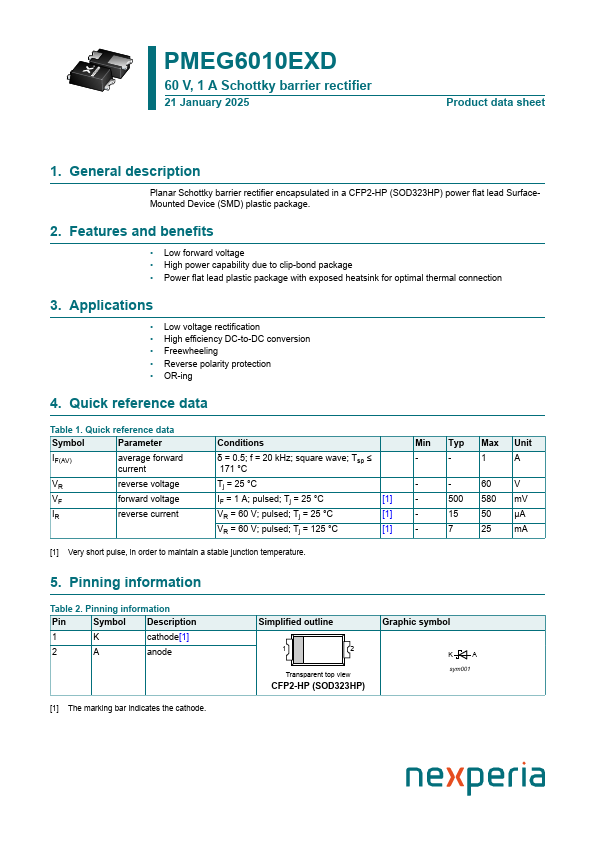

📥 Download Datasheet Datasheet Preview Page 1

Description

PMEG6010EXD 60 V, 1 A Schottky barrier rectifier 21 January 2025 Product data sheet 1.General .
Planar Schottky barrier rectifier encapsulated in a CFP2-HP (SOD323HP) power flat lead SurfaceMounted Device (SMD) plastic package.

📥 Download Datasheet

Preview of PMEG6010EXD PDF

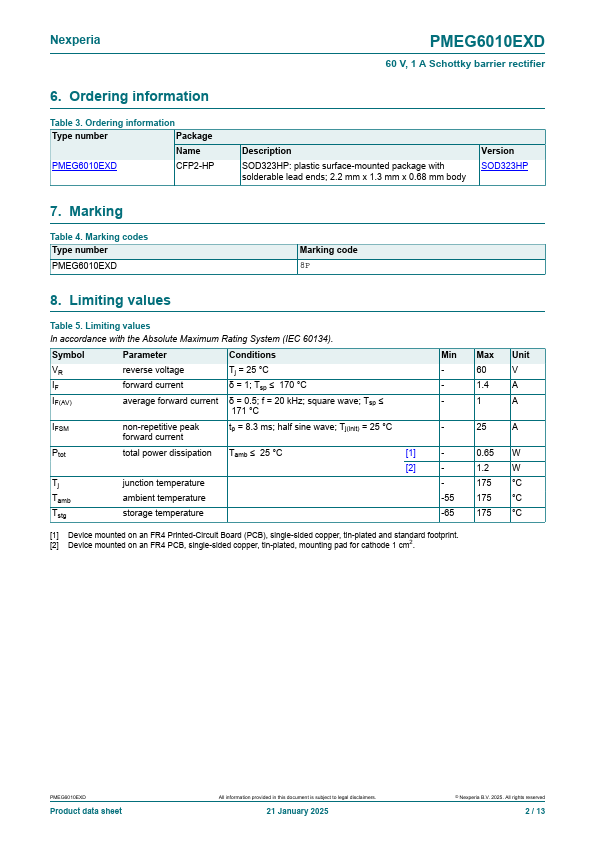

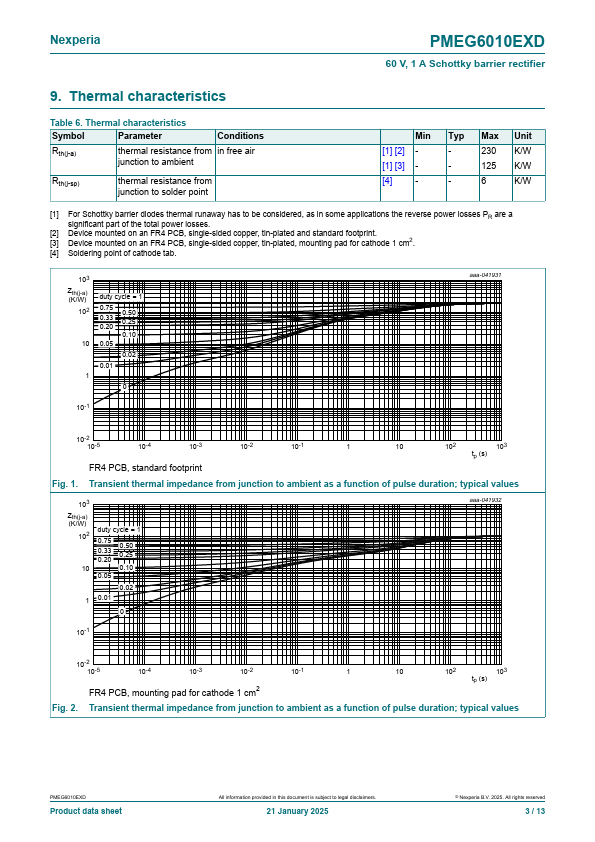

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Low forward voltage
* High power capability due to clip-bond package

Applications

* Low voltage rectification
* High efficiency DC-to-DC conversion
* Freewheeling
* Reverse polarity protection
* OR-ing 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF(AV) average forward current VR reverse voltage VF forwar
