PMEG6030CEP-Q - 60V 3A low VF Schottky barrier rectifier

nexperia

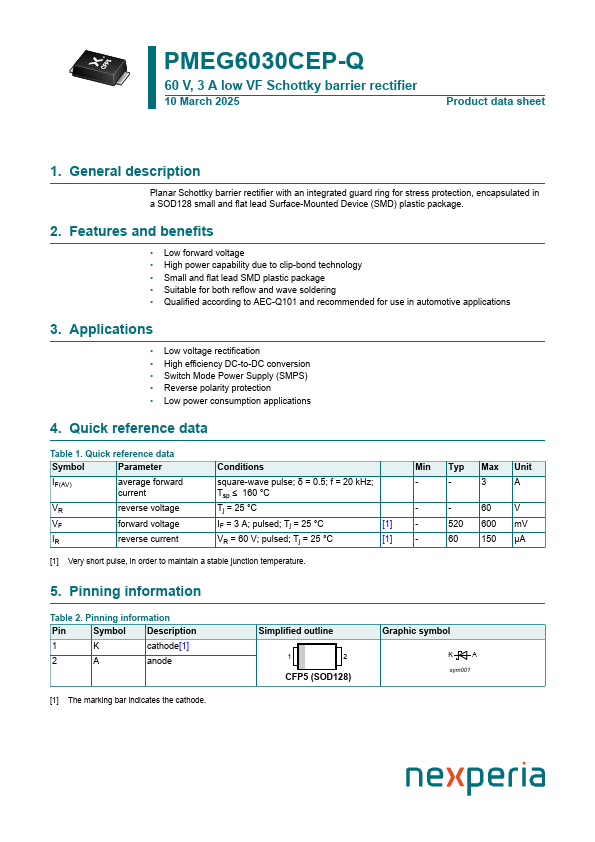

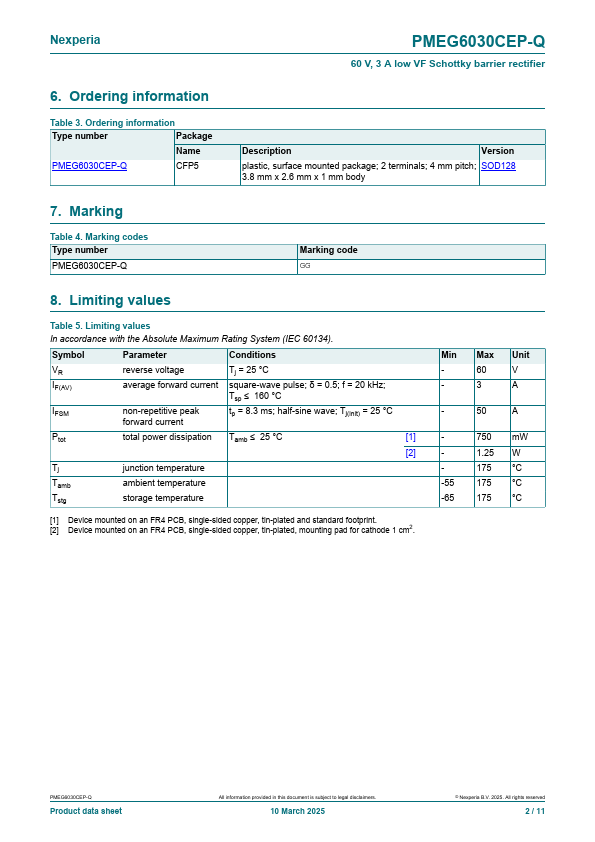

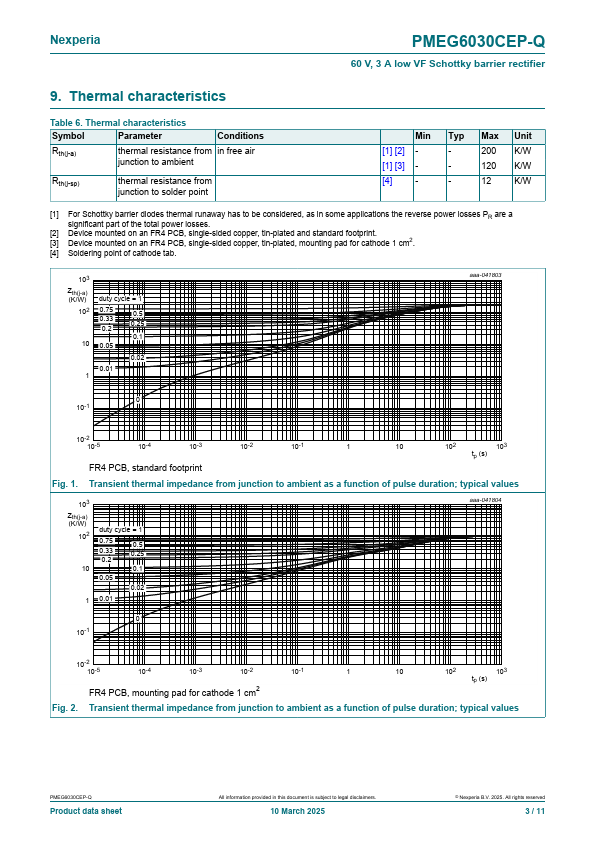

PMEG6030CEP-Q Datasheet Preview — Preview of PMEG6030CEP-Q PDF

Datasheet Details

Part number	PMEG6030CEP-Q
Manufacturer	nexperia ↗
File Size	236.23 KB
Description	60V 3A low VF Schottky barrier rectifier
Datasheet	PMEG6030CEP-Q-nexperia.pdf

PMEG6030CEP-Q Product details

Description

Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package.

Features

Low forward voltage.
High power capability due to clip-bond technology.
Small and flat lead SMD plastic package.
Suitable for both reflow and wave soldering.
Qualified according to AEC-Q101 and recommended for use in automotive.
